LHD-09-TRA

Active

Adam Tech

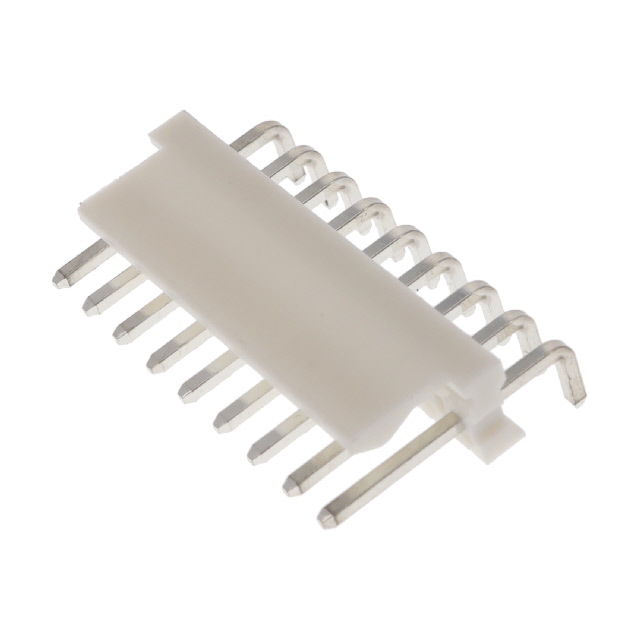

CONN HEADER R/A 9POS 3.96MM

Search across all available documentation for this part.

Active

Adam Tech

CONN HEADER R/A 9POS 3.96MM

Technical Specifications

Parameters and characteristics for this part

Specification	LHD-09-TRA

Connector Type	Header
Contact Length - Mating [custom]	11.4 mm
Contact Length - Mating [custom]	0.449 in
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	7 A
Fastening Type	Friction Lock
Insulation Color	White
Insulation Height [z]	0.3 in
Insulation Height [z]	7.62 mm
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Material Flammability Rating	UL94 V-2
Mounting Type	Through Hole, Right Angle
Number of Positions	9
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.156 in
Pitch - Mating	3.96 mm
Shrouding	Shrouded - 1 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Current Rating (Amps)	Contact Length - Post	Contact Length - Post [x]	Material Flammability Rating	Connector Type	Number of Positions Loaded	Termination	Style	Insulation Material	Insulation Height [z]	Insulation Height [z]	Contact Material	Number of Positions	Contact Type	Number of Rows	Contact Length - Mating [custom]	Contact Length - Mating [custom]	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Color	Mounting Type	Pitch - Mating	Pitch - Mating	Shrouding	Contact Shape	Contact Finish - Post	Insulation Height	Insulation Height	Contact Length - Mating	Contact Length - Mating	Contact Length - Post	Overall Contact Length [x]	Overall Contact Length [x]
Adam Tech LHD-09-TRA	7 A	3.2 mm	0.126 in	UL94 V-2	Header	All	Solder	Board to Cable/Wire	Polyamide (PA66) Nylon 6/6 Glass Filled	0.3 in	7.62 mm	Brass	9	Male Pin	1	11.4 mm	0.449 in	Friction Lock	85 °C	-40 °C	White	Through Hole Right Angle	0.156 in	3.96 mm	Shrouded - 1 Wall	Square
Adam Tech LHD-09-TRB	7 A	3.2 mm	0.126 in	UL94 V-2	Header	All	Solder	Board to Cable/Wire	Polyamide (PA66) Nylon 6/6 Glass Filled	0.3 in	7.62 mm	Brass	9	Male Pin	1	11.4 mm	0.449 in	Friction Lock	85 °C	-40 °C	White	Through Hole Right Angle	0.156 in	3.96 mm	Shrouded - 1 Wall	Square	Tin
Adam Tech LHD-09-TS	7 A	3.6 mm		UL94 V-2	Header	All	Solder	Board to Cable/Wire	Polyamide (PA66) Nylon 6/6			Brass	9	Male Pin	1			Friction Lock	105 ░C	-40 °C	White	Through Hole	0.156 in	3.96 mm	Shrouded - 1 Wall	Square	Tin	0.425 in	10.8 mm	0.448 in	11.38 mm	0.142 in	0.715 "	18.16 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 9 position 0.156" (3.96mm)
