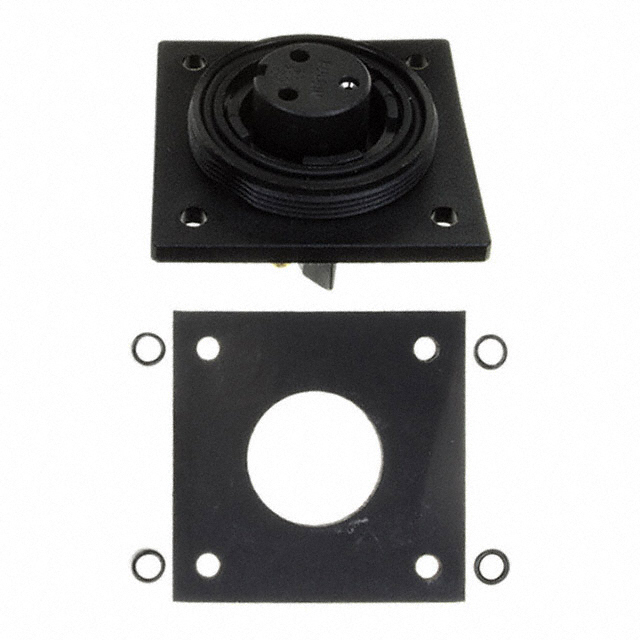

PX0765/S - PX0765/S

PX0765/S

Active
BULGIN LIMITED

CIRCULAR CONNECTOR, BUCCANEER STANDARD SERIES, PANEL MOUNT RECEPTACLE, 3 CONTACTS, SCREW SOCKET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetTechnical Data Sheet EN+1
PX0765/S - PX0765/S

PX0765/S

Active
BULGIN LIMITED

CIRCULAR CONNECTOR, BUCCANEER STANDARD SERIES, PANEL MOUNT RECEPTACLE, 3 CONTACTS, SCREW SOCKET

Deep-Dive with AI

DocumentsDatasheetTechnical Data Sheet EN+1

Technical Specifications

Parameters and characteristics for this part

SpecificationPX0765/S
ColorBlack
Connector TypeReceptacle, Female Sockets
Contact Finish - MatingNickel
Contact MaterialBrass
Current Rating (Amps)12 A
Ingress ProtectionIP68, IP69K
Insert MaterialNylon, Polyamide (PA)
Material Flammability RatingUL94 HB
Mounting FeatureFlange
Number of Positions [custom]3
Number of Positions [custom]1
Number of Positions [custom]2
Operating Temperature [Max]70 °C
Operating Temperature [Min]-20 C
OrientationKeyed
Primary MaterialPlastic
Shell MaterialNylon, Glass Filled, Polyamide (PA)
ShieldingUnshielded
TerminationScrew
Voltage Rating277 VAC/DC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 31.46
10$ 24.29
25$ 22.01
50$ 20.47
100$ 19.08
250$ 17.43
500$ 16.33
NewarkEach 1$ 25.31
10$ 22.63
25$ 21.56
50$ 20.49
100$ 19.82
250$ 18.75
500$ 18.35

Description

General part information

PX0765 Series

3 (2 Power + PE) Position Circular Connector Receptacle, Female Sockets Screw
