PX0765/P
ActiveBULGIN LIMITED

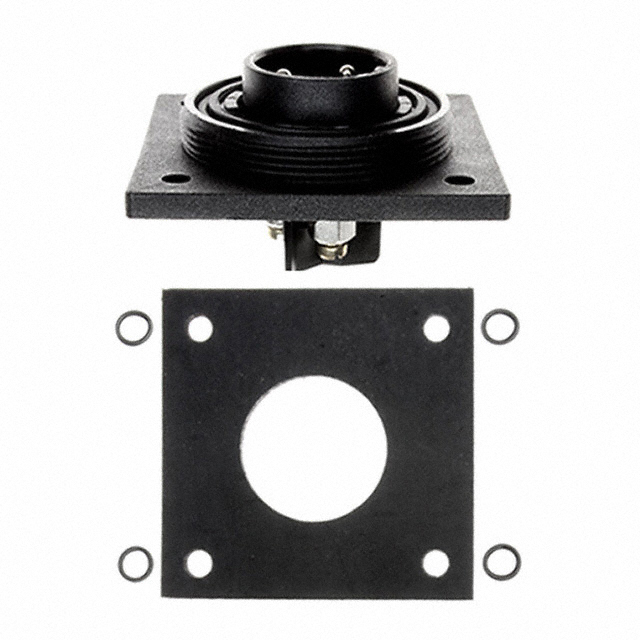

CIRCULAR CONNECTOR, BUCCANEER STANDARD SERIES, PANEL MOUNT PLUG, 3 CONTACTS, SCREW PIN, THREADED
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsTechnical Data Sheet EN
PX0765/P
ActiveBULGIN LIMITED
CIRCULAR CONNECTOR, BUCCANEER STANDARD SERIES, PANEL MOUNT PLUG, 3 CONTACTS, SCREW PIN, THREADED
Deep-Dive with AI
DocumentsTechnical Data Sheet EN
Technical Specifications
Parameters and characteristics for this part
| Specification | PX0765/P |
|---|---|
| Color | Black |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Nickel |
| Contact Material | Brass |
| Current Rating (Amps) | 12 A |
| Ingress Protection | IP68, IP69K |
| Insert Material | Nylon, Polyamide (PA) |
| Material Flammability Rating | UL94 HB |
| Mounting Feature | Flange |
| Number of Positions [custom] | 3 |
| Number of Positions [custom] | 1 |
| Number of Positions [custom] | 2 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Nylon, Glass Filled, Polyamide (PA) |
| Shielding | Unshielded |
| Termination | Screw |
| Voltage Rating | 277 VAC/DC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 22.91 | |
| 10 | $ 17.67 | |||
| 25 | $ 16.00 | |||
| 50 | $ 14.88 | |||
| 100 | $ 13.86 | |||
| 250 | $ 13.50 | |||
Description
General part information
PX0765 Series
3 (2 Power + PE) Position Circular Connector Receptacle, Male Pins Screw
