XRP7613IDBTR-F

Active

MaxLinear, Inc.

IC LED DRVR RGLTR PWM 1.2A 8SOIC

Search across all available documentation for this part.

Active

MaxLinear, Inc.

IC LED DRVR RGLTR PWM 1.2A 8SOIC

Technical Specifications

Parameters and characteristics for this part

Specification	XRP7613IDBTR-F

Applications	Lighting
Current - Output / Channel [custom]	1.2 A
Dimming	Analog, PWM
Frequency	1 MHz
Internal Switch(s)	True
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	0.154 in

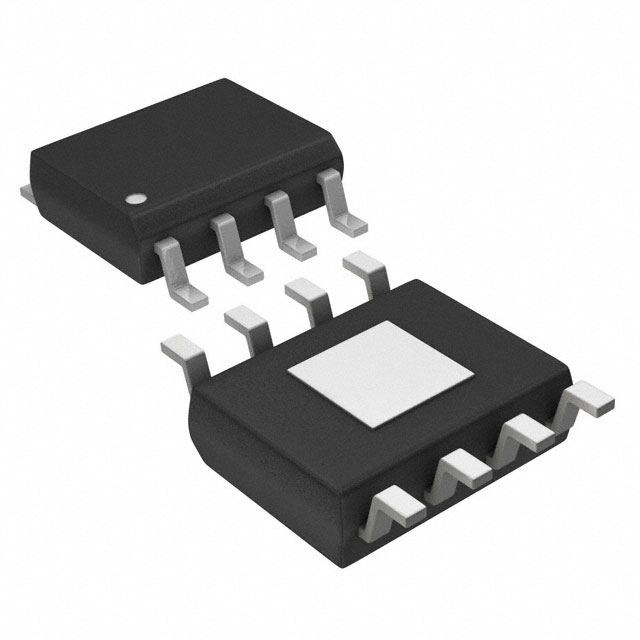

Package / Case	8-SOIC
Package / Case	3.9 mm
Supplier Device Package	8-SOIC-EP
Topology	Step-Down (Buck)
Type	DC DC Regulator
Voltage - Supply (Max) [Max]	36 V
Voltage - Supply (Min) [Min]	7 V

Part	Utilized IC / Part	Current - Output / Channel [custom]	Voltage - Input [Max]	Voltage - Input [Min]	Supplied Contents	Outputs and Type	Features	Applications	Mounting Type	Supplier Device Package	Voltage - Supply (Min) [Min]	Internal Switch(s)	Voltage - Supply (Max) [Max]	Dimming	Frequency	Number of Outputs	Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case	Package / Case	Topology
MaxLinear, Inc. XRP7613EVB	XRP7613	1.2 A	36 V	7 V	Board(s)	1 Non-Isolated Output	Dimmable
MaxLinear, Inc. XRP7613IDBTR-F		1.2 A						Lighting	Surface Mount	8-SOIC-EP	7 V		36 V	Analog PWM	1 MHz	1	DC DC Regulator	85 °C	-40 °C	0.154 in	8-SOIC	3.9 mm	Step-Down (Buck)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Driver IC 1 Output DC DC Regulator Step-Down (Buck) Analog, PWM Dimming 1.2A 8-SOIC-EP
