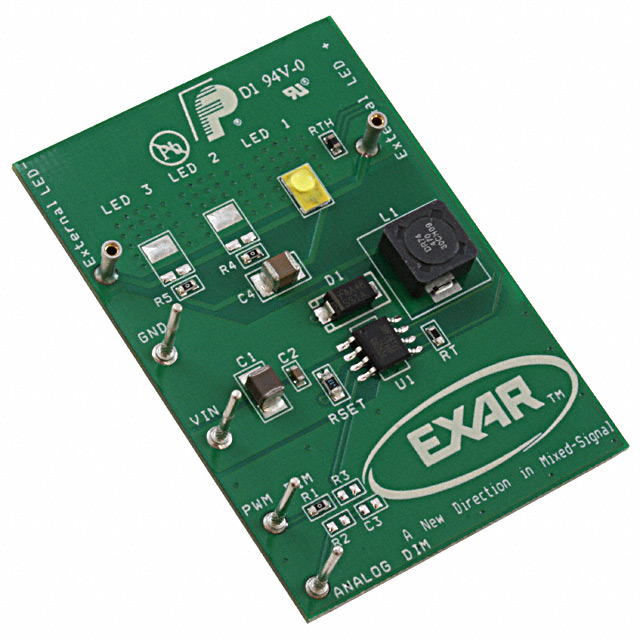

XRP7613EVB

Active

MaxLinear, Inc.

BOARD EVAL FOR XRP7613

Search across all available documentation for this part.

Active

MaxLinear, Inc.

BOARD EVAL FOR XRP7613

Technical Specifications

Parameters and characteristics for this part

Specification	XRP7613EVB

Current - Output / Channel [custom]	1.2 A
Features	Dimmable
Outputs and Type	1 Non-Isolated Output
Supplied Contents	Board(s)
Utilized IC / Part	XRP7613
Voltage - Input [Max]	36 V
Voltage - Input [Min]	7 V

Part	Utilized IC / Part	Current - Output / Channel [custom]	Voltage - Input [Max]	Voltage - Input [Min]	Supplied Contents	Outputs and Type	Features	Applications	Mounting Type	Supplier Device Package	Voltage - Supply (Min) [Min]	Internal Switch(s)	Voltage - Supply (Max) [Max]	Dimming	Frequency	Number of Outputs	Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case	Package / Case	Topology
MaxLinear, Inc. XRP7613EVB	XRP7613	1.2 A	36 V	7 V	Board(s)	1 Non-Isolated Output	Dimmable
MaxLinear, Inc. XRP7613IDBTR-F		1.2 A						Lighting	Surface Mount	8-SOIC-EP	7 V		36 V	Analog PWM	1 MHz	1	DC DC Regulator	85 °C	-40 °C	0.154 in	8-SOIC	3.9 mm	Step-Down (Buck)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 37.50

General part information

XRP7613 - 1 Non-Isolated Output pval(5) LED Driver Evaluation Board

Technical documentation and resources

No documents available
