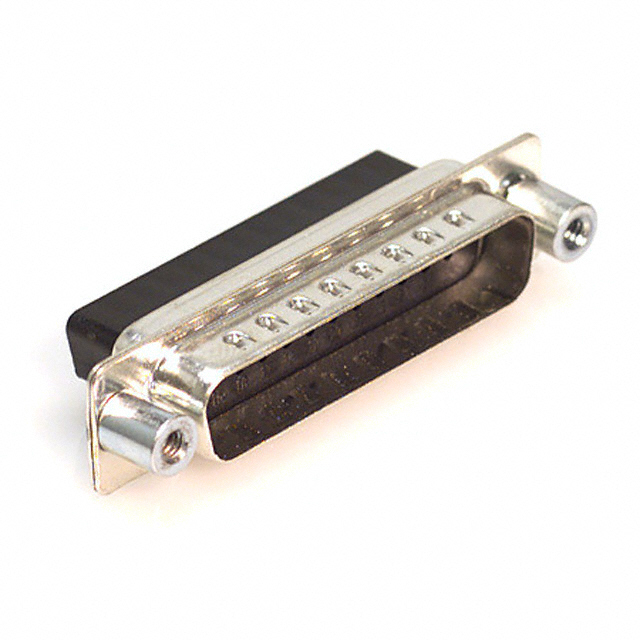

170-025-173L030

Active

MH Connectors

CONN D-SUB HOUSING PLUG 25POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Backshell Reference Guide

170-025-173L030

Active

MH Connectors

CONN D-SUB HOUSING PLUG 25POS

Deep-Dive with AI

DocumentsDatasheet Backshell Reference Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	170-025-173L030

Connector Style	D-Sub
Connector Type	Plug for Male Contacts
Contact Type	Signal
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents
Flange Feature	4-40
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-50 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3

170-025 Series

Part	Dielectric Material	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Features	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Connector Style	Shell Material, Finish	Contact Type	Note	Number of Rows	Flange Feature	Mounting Type	Color
MH Connectors 170-025-173L020	Polybutylene Terephthalate (PBT) Glass Filled	B DB	3	Grounding Indents	-50 °C	125 °C	Plug for Male Contacts	D-Sub	Nickel Plated Steel	Signal	Contacts Not Included	2	Cable Side	Free Hanging (In-Line)
MH Connectors 170-025-273L010	Polybutylene Terephthalate (PBT)	B DB	3		-50 °C	125 °C	Receptacle for Female Contacts	D-Sub	Nickel Plated Steel	Signal	Contacts Not Included	2	Cable Side	Free Hanging (In-Line)	Black
MH Connectors 170-025-272L020	Polybutylene Terephthalate (PBT)	B DB	3		-50 °C	125 °C	Receptacle for Female Contacts	D-Sub		Signal	Contacts Not Included	2	Cable Side	Free Hanging (In-Line)	Black
MH Connectors 170-025-172L020	Polybutylene Terephthalate (PBT)	B DB	3		-50 °C	125 °C	Plug for Male Contacts	D-Sub		Signal	Contacts Not Included	2	Cable Side	Free Hanging (In-Line)	Black
MH Connectors 170-025-173L000	Polybutylene Terephthalate (PBT) Glass Filled	B DB	3	Grounding Indents	-50 °C	125 °C	Plug for Male Contacts	D-Sub	Nickel Plated Steel	Signal	Contacts Not Included	2	Housing/Shell (Unthreaded)	Free Hanging (In-Line)
MH Connectors 170-025-173L030	Polybutylene Terephthalate (PBT) Glass Filled	B DB	3	Grounding Indents	-50 °C	125 °C	Plug for Male Contacts	D-Sub	Nickel Plated Steel	Signal	Contacts Not Included	2	4-40	Free Hanging (In-Line)
MH Connectors 170-025-272L000	Polybutylene Terephthalate (PBT)	B DB	3		-50 °C	125 °C	Receptacle for Female Contacts	D-Sub		Signal	Contacts Not Included	2	Housing/Shell (Unthreaded)	Free Hanging (In-Line)	Black
MH Connectors 170-025-173L010	Polybutylene Terephthalate (PBT) Glass Filled	B DB	3	Grounding Indents	-50 °C	125 °C	Plug for Male Contacts	D-Sub	Nickel Plated Steel	Signal	Contacts Not Included	2	Cable Side	Free Hanging (In-Line)
MH Connectors 170-025-272L030	Polybutylene Terephthalate (PBT)	B DB	3		-50 °C	125 °C	Receptacle for Female Contacts	D-Sub		Signal	Contacts Not Included	2	4-40	Free Hanging (In-Line)	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 1.85

Description

General part information

170-025 Series

Plug for Male Contacts Housing D-Sub Connector 25 Position
