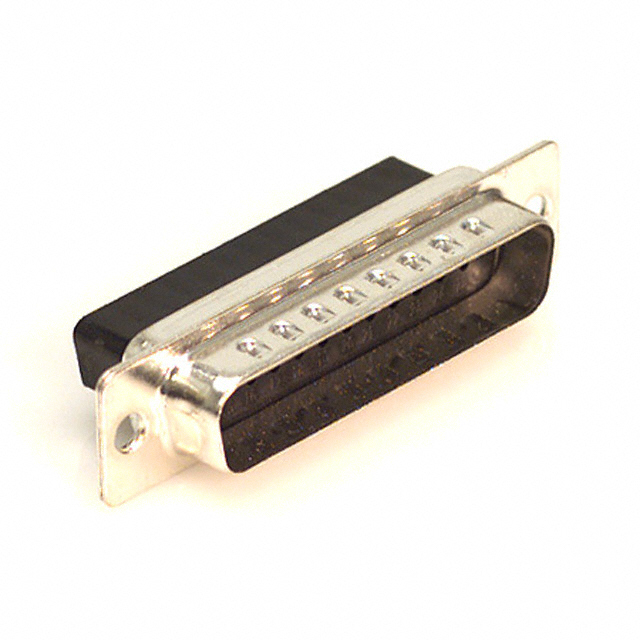

170-025-173L000 - 170-025-172-(L)000

170-025-173L000

Active
MH Connectors

D SUB CONNECTOR HOUSING, 25 POSITIONS, D SUB, DB, 170 SERIES, PLUG, STEEL BODY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetBackshell Reference Guide+4
170-025-173L000 - 170-025-172-(L)000

170-025-173L000

Active
MH Connectors

D SUB CONNECTOR HOUSING, 25 POSITIONS, D SUB, DB, 170 SERIES, PLUG, STEEL BODY

Deep-Dive with AI

DocumentsDatasheetBackshell Reference Guide+4

Technical Specifications

Parameters and characteristics for this part

Specification170-025-173L000
Connector StyleD-Sub
Connector TypePlug for Male Contacts
Contact TypeSignal
Dielectric MaterialPolybutylene Terephthalate (PBT), Glass Filled
FeaturesGrounding Indents
Flange FeatureHousing/Shell (Unthreaded)
Mounting TypeFree Hanging (In-Line)
NoteContacts Not Included
Number of Rows2
Operating Temperature [Max]125 °C
Operating Temperature [Min]-50 °C
Shell Material, FinishNickel Plated, Steel
Shell Size, Connector Layout [custom]DB, B
Shell Size, Connector Layout [custom]3

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 1.66
10$ 1.27
25$ 1.14
40$ 1.08
80$ 1.00
230$ 0.89
440$ 0.83
945$ 0.77
2400$ 0.70
NewarkEach 50$ 1.10
100$ 1.06
250$ 0.96
500$ 0.86
1000$ 0.77

Description

General part information

170-025 Series

The 170 series Crimp and Poke D-Sub Connector is available in 5 industry sizes/positions (9, 15, 25, 37 and 50). It is a low cost commercial version of military standard. It allows for easy loading of only the positions required using crimp and snap-in contacts. The nickel-plated connector shells have indents to provide grounding and additional retention.
