WP59GYW

Active

Kingbright

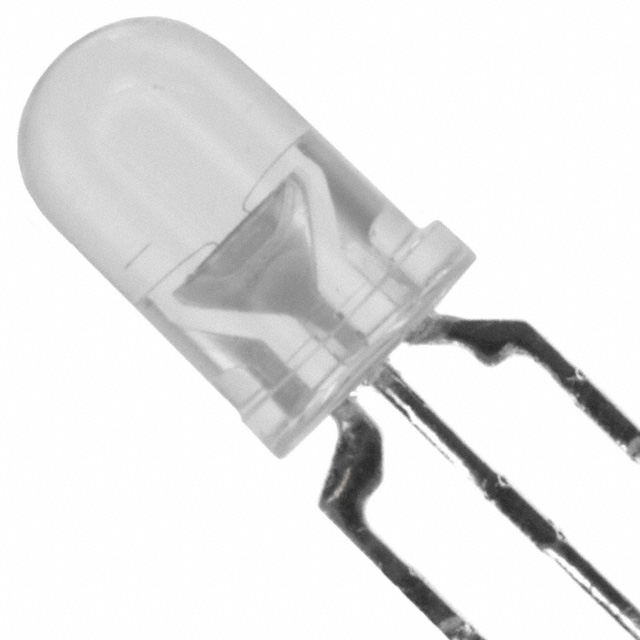

LED BI-COLOR GREEN/YELLOW 565NM/590NM 3-PIN T-1 3/4 BAG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

WP59GYW

Active

Kingbright

LED BI-COLOR GREEN/YELLOW 565NM/590NM 3-PIN T-1 3/4 BAG

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WP59GYW

Color	Green, Yellow
Configuration	Common Cathode
Current - Test	20 mA, 20 mA
Height (Max) [Max] [z]	11.35 mm
Lens Color	White
Lens Size	T-1 3/4
Lens Size	5 mm
Lens Style	Round with Domed Top
Lens Transparency	Diffused
Millicandela Rating [custom]	40 mcd
Millicandela Rating [custom]	50 mcd
Mounting Type	Through Hole
Package / Case	Radial - 3 Leads
Size / Dimension [diameter]	5 mm
Supplier Device Package	T-1 3/4
Viewing Angle	60 °
Voltage - Forward (Vf) (Typ)	2.2 V, 2.1 V
Wavelength - Dominant	568 nm, 588 nm
Wavelength - Peak	565 nm, 590 nm

WP59 Series

Part	Configuration	Package / Case	Viewing Angle	Wavelength - Peak	Lens Size	Lens Size	Lens Transparency	Current - Test	Voltage - Forward (Vf) (Typ)	Mounting Type	Supplier Device Package	Size / Dimension [diameter]	Lens Style	Lens Color	Wavelength - Dominant	Color	Height (Max) [Max] [z]	Millicandela Rating	Millicandela Rating [custom]	Millicandela Rating [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Millicandela Rating	Current	Lens Type	Wavelength - Peak [custom]	Voltage Rating	Wavelength - Peak [custom]	Millicandela Rating [custom]	Current - Test	Wavelength - Dominant [custom]
Kingbright WP59EGW	Common Cathode	Radial - 3 Leads	60 °	565 nm 627 nm	T-1 3/4	5 mm	Diffused	20 mA 20 mA	2 V 2.2 V	Through Hole	T-1 3/4	5 mm	Round with Domed Top	White	568 nm 617 nm	Green Red	11.35 mm	40mcd Red 60mcd Green
Kingbright WP59GYW	Common Cathode	Radial - 3 Leads	60 °	565 nm 590 nm	T-1 3/4	5 mm	Diffused	20 mA 20 mA	2.1 V 2.2 V	Through Hole	T-1 3/4	5 mm	Round with Domed Top	White	568 nm 588 nm	Green Yellow	11.35 mm		40 mcd	50 mcd
Kingbright WP59SURKCGKW	Common Cathode	Radial - 3 Leads	30 °	574 nm 645 nm	T-1 3/4	5 mm	Diffused	20 mA 20 mA		Through Hole	T-1 3/4	5 mm	Round with Domed Top	White	570 nm 630 nm	Green Red	11.35 mm				2.1 V	1.95 V	180 mcd 200 mcd
Kingbright WP59CB/EGW	Single		60 °		T-1 3/4	5 mm				Through Hole Right Angle			Round with Domed Top			Green Red		40mcd Red 60mcd Green						25 mA 30 mA	Diffused White	565 nm 627 nm	2 V 2.2 V
Kingbright WP59CB/GYW	Single		60 °		T-1 3/4	5 mm				Through Hole			Round with Domed Top			Green Yellow							40 mcd 100 mcd	25 mA 30 mA	Diffused White		2.1 V 2.2 V	565 nm 590 nm
Kingbright WP59EGW/CA	Common Anode	Radial - 3 Leads	60 °	565 nm 627 nm	T-1 3/4	5 mm	Diffused	20 mA 20 mA	2 V 2.2 V	Through Hole	T-1 3/4	5 mm	Round with Domed Top	White	568 nm 625 nm	Green Red	11.35 mm			8 mcd									6 mcd
Kingbright WP59EGC	Common Cathode	Radial - 3 Leads	24 °	565 nm 627 nm	T-1 3/4	5 mm	Clear	20 mA 20 mA	2 V 2.2 V	Through Hole	T-1 3/4	5 mm	Round with Domed Top	Colorless	568 nm 617 nm	Green Red	11.35 mm			120 mcd									100 mcd
Kingbright WP59BL/EGW	Single		30 °		T-1 3/4	5 mm				Through Hole Right Angle			Round with Domed Top			Green Red		40mcd Red 60mcd Green						20 mA 20 mA	Diffused White	565 nm 627 nm	2 V 2.2 V
Kingbright WP59BL/GYW	Single		30 °		T-1 3/4	5 mm				Through Hole Right Angle			Round with Domed Top			Green Yellow							40 mcd 100 mcd	25 mA 30 mA	Diffused White		2.1 V 2.2 V	565 nm 590 nm
Kingbright WP59EYW	Common Cathode	Radial - 3 Leads	60 °	590 nm 627 nm	T-1 3/4	5 mm	Diffused		2 V 2.1 V	Through Hole	T-1 3/4	5 mm	Round with Domed Top	White		Red Yellow	11.35 mm						40 mcd 40 mcd							20mA Red 20mA Yellow	588 nm 617 nm
