WP59EGW/CA

Active

Kingbright

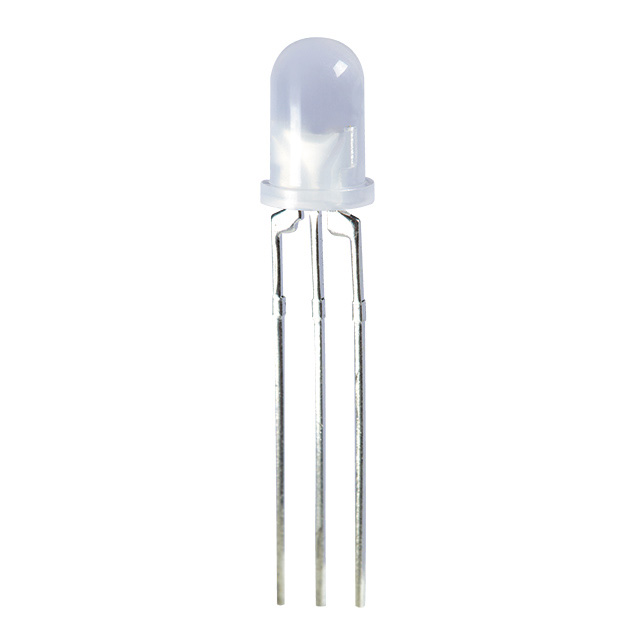

LED GRN/RED DIFFUSED T-1 3/4 T/H

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

WP59EGW/CA

Active

Kingbright

LED GRN/RED DIFFUSED T-1 3/4 T/H

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WP59EGW/CA

Color	Red, Green
Configuration	Common Anode
Current - Test	20 mA, 20 mA
Height (Max) [Max] [z]	11.35 mm
Lens Color	White
Lens Size	T-1 3/4
Lens Size	5 mm
Lens Style	Round with Domed Top
Lens Transparency	Diffused
Millicandela Rating [custom]	8 mcd
Millicandela Rating [custom]	6 mcd
Mounting Type	Through Hole
Package / Case	Radial - 3 Leads
Size / Dimension [diameter]	5 mm
Supplier Device Package	T-1 3/4
Viewing Angle	60 °
Voltage - Forward (Vf) (Typ)	2.2 V, 2 V
Wavelength - Dominant	625 nm, 568 nm
Wavelength - Peak	565 nm, 627 nm

WP59 Series

Part	Configuration	Package / Case	Viewing Angle	Wavelength - Peak	Lens Size	Lens Size	Lens Transparency	Current - Test	Voltage - Forward (Vf) (Typ)	Mounting Type	Supplier Device Package	Size / Dimension [diameter]	Lens Style	Lens Color	Wavelength - Dominant	Color	Height (Max) [Max] [z]	Millicandela Rating	Millicandela Rating [custom]	Millicandela Rating [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Millicandela Rating	Current	Lens Type	Wavelength - Peak [custom]	Voltage Rating	Wavelength - Peak [custom]	Millicandela Rating [custom]	Current - Test	Wavelength - Dominant [custom]
Kingbright WP59EGW	Common Cathode	Radial - 3 Leads	60 °	565 nm 627 nm	T-1 3/4	5 mm	Diffused	20 mA 20 mA	2 V 2.2 V	Through Hole	T-1 3/4	5 mm	Round with Domed Top	White	568 nm 617 nm	Green Red	11.35 mm	40mcd Red 60mcd Green
Kingbright WP59GYW	Common Cathode	Radial - 3 Leads	60 °	565 nm 590 nm	T-1 3/4	5 mm	Diffused	20 mA 20 mA	2.1 V 2.2 V	Through Hole	T-1 3/4	5 mm	Round with Domed Top	White	568 nm 588 nm	Green Yellow	11.35 mm		40 mcd	50 mcd
Kingbright WP59SURKCGKW	Common Cathode	Radial - 3 Leads	30 °	574 nm 645 nm	T-1 3/4	5 mm	Diffused	20 mA 20 mA		Through Hole	T-1 3/4	5 mm	Round with Domed Top	White	570 nm 630 nm	Green Red	11.35 mm				2.1 V	1.95 V	180 mcd 200 mcd
Kingbright WP59CB/EGW	Single		60 °		T-1 3/4	5 mm				Through Hole Right Angle			Round with Domed Top			Green Red		40mcd Red 60mcd Green						25 mA 30 mA	Diffused White	565 nm 627 nm	2 V 2.2 V
Kingbright WP59CB/GYW	Single		60 °		T-1 3/4	5 mm				Through Hole			Round with Domed Top			Green Yellow							40 mcd 100 mcd	25 mA 30 mA	Diffused White		2.1 V 2.2 V	565 nm 590 nm
Kingbright WP59EGW/CA	Common Anode	Radial - 3 Leads	60 °	565 nm 627 nm	T-1 3/4	5 mm	Diffused	20 mA 20 mA	2 V 2.2 V	Through Hole	T-1 3/4	5 mm	Round with Domed Top	White	568 nm 625 nm	Green Red	11.35 mm			8 mcd									6 mcd
Kingbright WP59EGC	Common Cathode	Radial - 3 Leads	24 °	565 nm 627 nm	T-1 3/4	5 mm	Clear	20 mA 20 mA	2 V 2.2 V	Through Hole	T-1 3/4	5 mm	Round with Domed Top	Colorless	568 nm 617 nm	Green Red	11.35 mm			120 mcd									100 mcd
Kingbright WP59BL/EGW	Single		30 °		T-1 3/4	5 mm				Through Hole Right Angle			Round with Domed Top			Green Red		40mcd Red 60mcd Green						20 mA 20 mA	Diffused White	565 nm 627 nm	2 V 2.2 V
Kingbright WP59BL/GYW	Single		30 °		T-1 3/4	5 mm				Through Hole Right Angle			Round with Domed Top			Green Yellow							40 mcd 100 mcd	25 mA 30 mA	Diffused White		2.1 V 2.2 V	565 nm 590 nm
Kingbright WP59EYW	Common Cathode	Radial - 3 Leads	60 °	590 nm 627 nm	T-1 3/4	5 mm	Diffused		2 V 2.1 V	Through Hole	T-1 3/4	5 mm	Round with Domed Top	White		Red Yellow	11.35 mm						40 mcd 40 mcd							20mA Red 20mA Yellow	588 nm 617 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.51
		10	$ 0.32
		100	$ 0.18
		1000	$ 0.14
		5000	$ 0.12
		10000	$ 0.11

Description

General part information

WP59 Series

Green, Red 568nm Green, 625nm Red LED Indication - Discrete 2.2V Green, 2V Red Radial - 3 Leads
