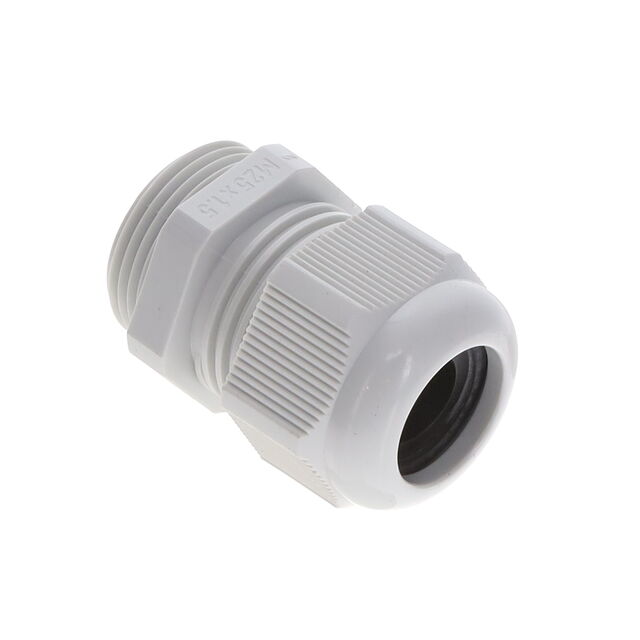

50.625PA/R7035
ActiveJacob GmbH
CABLE GLAND 8-16.99MM M25
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
50.625PA/R7035
ActiveJacob GmbH
CABLE GLAND 8-16.99MM M25
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 50.625PA/R7035 |
|---|---|
| Color | Gray |
| Includes | Sealing Ring |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Outside Cable Diameter (Max) [Max] [diameter] | 16.99 mm |
| Outside Cable Diameter (Max) [Max] [diameter] | 0.669 in |
| Outside Cable Diameter (Min) [Min] [diameter] | 8 mm |
| Outside Cable Diameter (Min) [Min] [diameter] | 0.315 in |
| Thread Length | 8 mm |
| Thread Length | 0.315 in |
| Thread Size | M25x1.5 |
| Type | Cable Gland |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 2.27 | |
| 10 | $ 1.98 | |||
| 25 | $ 1.89 | |||
| 50 | $ 1.85 | |||
| 100 | $ 1.77 | |||
| 250 | $ 1.60 | |||
| 500 | $ 1.47 | |||
| 1000 | $ 1.26 | |||
| 2500 | $ 1.18 | |||
Description
General part information
50.625 Series
Cable Gland Polyamide (PA6), Nylon 6 M25x1.5 Gray
