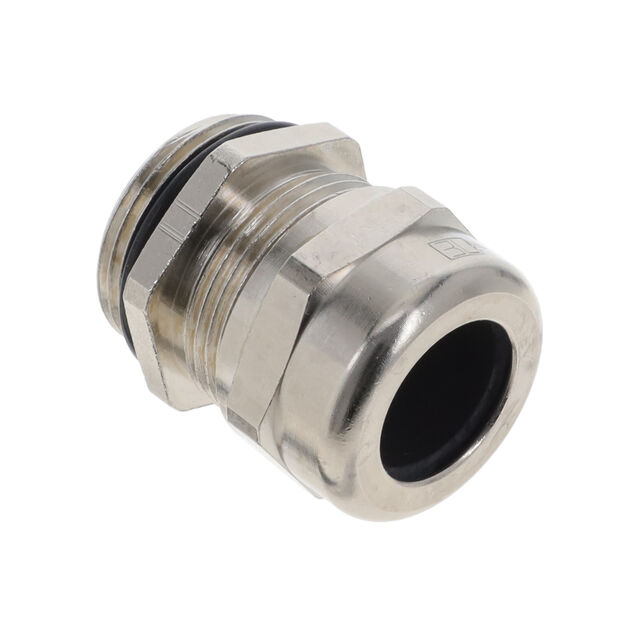

50.625 M/EMVD
ActiveJacob GmbH
CABLE GLAND 11-16MM M25 BRASS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
50.625 M/EMVD
ActiveJacob GmbH
CABLE GLAND 11-16MM M25 BRASS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 50.625 M/EMVD |
|---|---|
| Color | Silver |
| Includes | O-Ring, Seal |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Material | Brass, Nickel Plated |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Outside Cable Diameter (Max) [Max] [diameter] | 0.63 " |
| Outside Cable Diameter (Max) [Max] [diameter] | 16 mm |
| Outside Cable Diameter (Min) [Min] [diameter] | 0.433 in |
| Outside Cable Diameter (Min) [Min] [diameter] | 11 mm |
| Thread Length | 7 mm |
| Thread Length | 0.276 in |
| Thread Size | M25x1.5 |
| Type | Cable Gland |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 16.27 | |
| 10 | $ 14.42 | |||
| 25 | $ 13.86 | |||
| 50 | $ 13.31 | |||
| 100 | $ 12.57 | |||
| 250 | $ 11.46 | |||
| 500 | $ 10.72 | |||
| 1000 | $ 9.83 | |||
Description
General part information
50.625 Series
Cable Gland Brass, Nickel Plated M25x1.5 Silver
Documents
Technical documentation and resources
