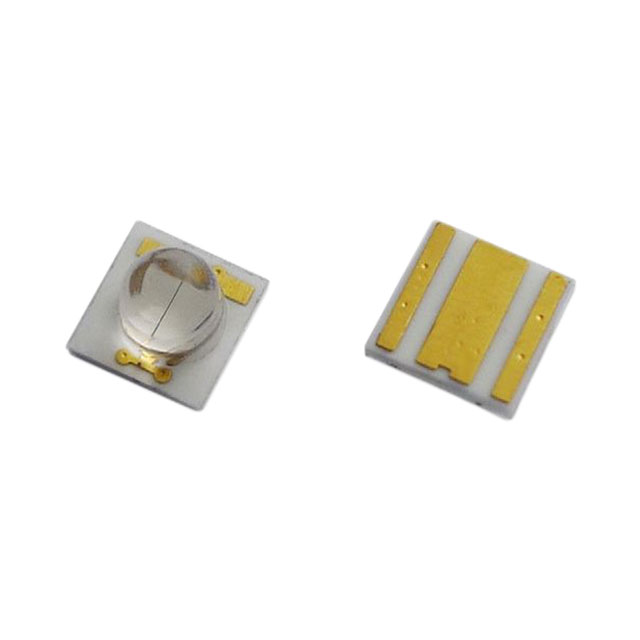

VLMU3500-395-060
ObsoleteVishay General Semiconductor - Diodes Division
LED UV 395NM 700MA SMD
Deep-Dive with AI
Search across all available documentation for this part.
VLMU3500-395-060
ObsoleteVishay General Semiconductor - Diodes Division
LED UV 395NM 700MA SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VLMU3500-395-060 |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 700 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Top View |
| Package / Case | 2-SMD, No Lead Exposed Pad |
| Radiant Intensity (Ie) Min @ If | 500 mA |
| Radiant Intensity (Ie) Min @ If [Min] | 550 mW/sr |
| Type | Ultraviolet (UV) |
| Viewing Angle | 60 ° |
| Voltage - Forward (Vf) (Typ) | 3.4 V |
| Wavelength | 395 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
VLMU3500 Series
Ultraviolet (UV) Emitter 395nm 3.4V 700mA 550mW/sr @ 500mA 60° 2-SMD, No Lead Exposed Pad
Documents
Technical documentation and resources
No documents available
