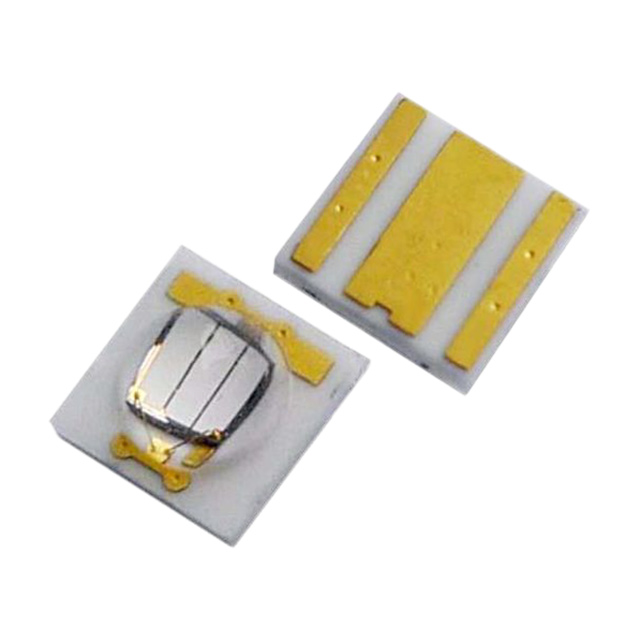

VLMU3500-385-120

Obsolete

Vishay General Semiconductor - Diodes Division

LED UV 385NM 700MA SMD

Search across all available documentation for this part.

Obsolete

Vishay General Semiconductor - Diodes Division

LED UV 385NM 700MA SMD

Technical Specifications

Parameters and characteristics for this part

Specification	VLMU3500-385-120

Current - DC Forward (If) (Max) [Max]	700 mA
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Top View
Package / Case	3-SMD, No Lead
Radiant Intensity (Ie) Min @ If [Min]	295 mW/sr
Type	Ultraviolet (UV)
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	3.4 V
Wavelength	385 nm

Part	Type	Viewing Angle	Current - DC Forward (If) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Forward (Vf) (Typ)	Package / Case	Orientation	Radiant Intensity (Ie) Min @ If [Min]	Wavelength	Mounting Type	Radiant Intensity (Ie) Min @ If
Vishay General Semiconductor - Diodes Division VLMU3500-405-120	Ultraviolet (UV)	120 °	700 mA	85 °C	-40 °C	3.4 V	2-SMD No Lead Exposed Pad	Top View	295 mW/sr	405 nm	Surface Mount
Vishay General Semiconductor - Diodes Division VLMU3500-405-060	Ultraviolet (UV)	60 °	700 mA	85 °C	-40 °C	3.4 V	2-SMD No Lead Exposed Pad	Top View	550 mW/sr	405 nm	Surface Mount	500 mA
Vishay General Semiconductor - Diodes Division VLMU3500-395-060	Ultraviolet (UV)	60 °	700 mA	85 °C	-40 °C	3.4 V	2-SMD No Lead Exposed Pad	Top View	550 mW/sr	395 nm	Surface Mount	500 mA
Vishay General Semiconductor - Diodes Division VLMU3500-385-120	Ultraviolet (UV)	120 °	700 mA	85 °C	-40 °C	3.4 V	3-SMD No Lead	Top View	295 mW/sr	385 nm	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Ultraviolet (UV) Emitter 385nm 3.4V 700mA 295mW/sr @ 500mA 120° 3-SMD, No Lead
