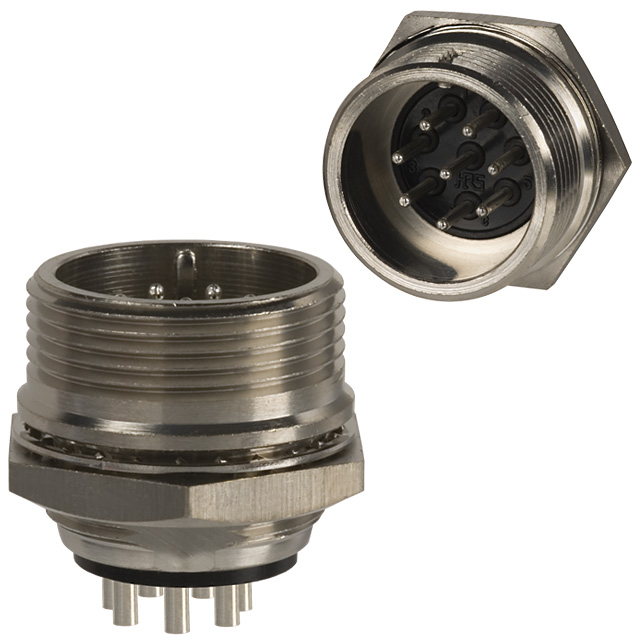

RM15TRH-8PH(71)

Obsolete

Hirose Electric USA, Inc.

CONN RCPT MALE 8P SILV SLDR CUP

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN RCPT MALE 8P SILV SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	RM15TRH-8PH(71)

Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Finish Thickness - Mating	78.7 µin
Contact Finish Thickness - Mating	2 µm
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Insert Material	Diallyl Phthalate (DAP)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	8
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	15
Voltage Rating	700 VDC, 500 VAC

Part	Number of Positions	Voltage Rating	Shell Size - Insert	Mounting Feature	Current Rating (Amps)	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Color	Contact Finish - Mating	Contact Material	Insert Material	Shell Finish	Shell Material	Material Flammability Rating	Shielding	Primary Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Hirose Electric USA, Inc. RM15TRH-4SA(71)	4	500 VAC 700 VDC	15	Bulkhead - Rear Side Nut	10 A	Receptacle Female Sockets	-25 °C	85 °C	Keyed
Hirose Electric USA, Inc. RM15TRH-4SA	4	500 VAC 700 VDC	15	Bulkhead - Rear Side Nut	10 A	Receptacle Female Sockets	-25 °C	85 °C	Keyed
Hirose Electric USA, Inc. RM15TRH-10S(81)	10	350 VAC 490 VDC	15	Bulkhead - Rear Side Nut	5 A	Receptacle Female Sockets	-25 °C	85 °C	Keyed	Silver	Silver	Copper Alloy	Diallyl Phthalate (DAP)	Nickel	Zinc Alloy	UL94 V-0	Unshielded	Metal
Hirose Electric USA, Inc. RM15TRH-4PA	4	500 VAC 700 VDC	15	Bulkhead - Rear Side Nut	10 A	Male Pins Receptacle	-25 °C	85 °C	Keyed
Hirose Electric USA, Inc. RM15TRH-4SA(81)	4		15	Bulkhead - Rear Side Nut	10 A	Receptacle Female Sockets	-25 °C	85 °C	Keyed		Silver	Copper Alloy	Polyphenylene Sulfide (PPS)				Unshielded	Metal
Hirose Electric USA, Inc. RM15TRH-8PH(71)	8	500 VAC 700 VDC	15	Bulkhead - Rear Side Nut	5 A	Male Pins Receptacle	-25 °C	85 °C	Keyed	Silver	Silver	Copper Alloy	Diallyl Phthalate (DAP)	Nickel	Brass	UL94 V-0		Metal	78.7 µin	2 µm
Hirose Electric USA, Inc. RM15TRH-2SA	2	600 VAC 840 VDC	15	Bulkhead - Rear Side Nut	10 A	Receptacle Female Sockets	-25 °C	85 °C	Keyed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

8 Position Circular Connector Receptacle, Male Pins Solder Cup
