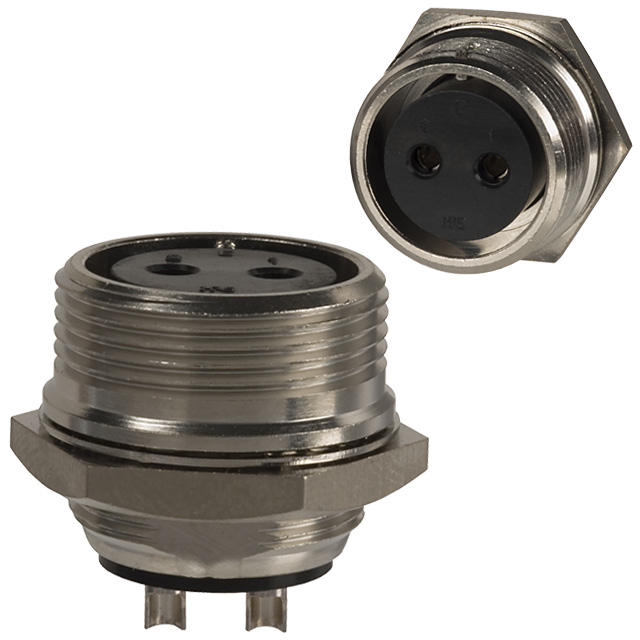

RM15TRH-2SA

Obsolete

Hirose Electric USA, Inc.

CONN RCPT FMALE 2 POS

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN RCPT FMALE 2 POS

Technical Specifications

Parameters and characteristics for this part

Part	Number of Positions	Voltage Rating	Shell Size - Insert	Mounting Feature	Current Rating (Amps)	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Color	Contact Finish - Mating	Contact Material	Insert Material	Shell Finish	Shell Material	Material Flammability Rating	Shielding	Primary Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Hirose Electric USA, Inc. RM15TRH-4SA(71)	4	500 VAC 700 VDC	15	Bulkhead - Rear Side Nut	10 A	Receptacle Female Sockets	-25 °C	85 °C	Keyed
Hirose Electric USA, Inc. RM15TRH-4SA	4	500 VAC 700 VDC	15	Bulkhead - Rear Side Nut	10 A	Receptacle Female Sockets	-25 °C	85 °C	Keyed
Hirose Electric USA, Inc. RM15TRH-10S(81)	10	350 VAC 490 VDC	15	Bulkhead - Rear Side Nut	5 A	Receptacle Female Sockets	-25 °C	85 °C	Keyed	Silver	Silver	Copper Alloy	Diallyl Phthalate (DAP)	Nickel	Zinc Alloy	UL94 V-0	Unshielded	Metal
Hirose Electric USA, Inc. RM15TRH-4PA	4	500 VAC 700 VDC	15	Bulkhead - Rear Side Nut	10 A	Male Pins Receptacle	-25 °C	85 °C	Keyed
Hirose Electric USA, Inc. RM15TRH-4SA(81)	4		15	Bulkhead - Rear Side Nut	10 A	Receptacle Female Sockets	-25 °C	85 °C	Keyed		Silver	Copper Alloy	Polyphenylene Sulfide (PPS)				Unshielded	Metal
Hirose Electric USA, Inc. RM15TRH-8PH(71)	8	500 VAC 700 VDC	15	Bulkhead - Rear Side Nut	5 A	Male Pins Receptacle	-25 °C	85 °C	Keyed	Silver	Silver	Copper Alloy	Diallyl Phthalate (DAP)	Nickel	Brass	UL94 V-0		Metal	78.7 µin	2 µm
Hirose Electric USA, Inc. RM15TRH-2SA	2	600 VAC 840 VDC	15	Bulkhead - Rear Side Nut	10 A	Receptacle Female Sockets	-25 °C	85 °C	Keyed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

2 Position Circular Connector Receptacle, Female Sockets
