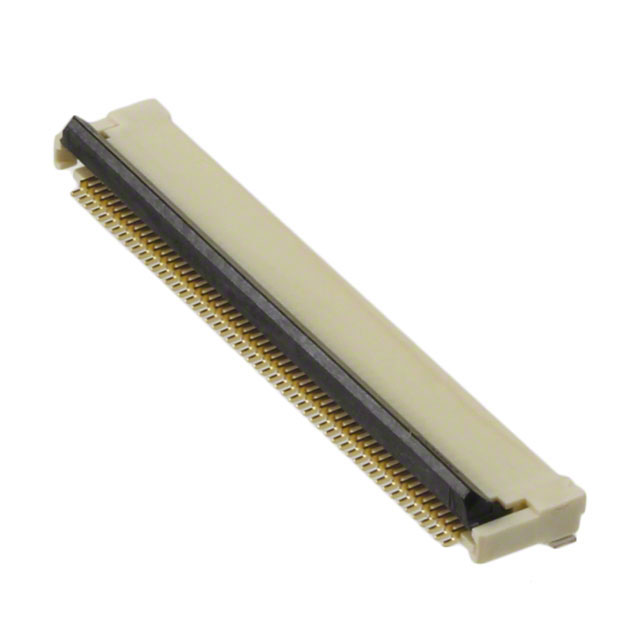

XF2M-5415-1AH

Active

Omron Electronics Inc-EMC Div

CONN FPC 54POS 0.5MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XF2M-5415-1AH

Active

Omron Electronics Inc-EMC Div

CONN FPC 54POS 0.5MM R/A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XF2M-5415-1AH

Actuator Color	Black
Actuator Material	Liquid Crystal Polymer (LCP), Halogen Free
Cable End Type	Tapered
Connector/Contact Type	Contacts, Top and Bottom
Contact Finish	Gold
Contact Finish Thickness	5.9 µin
Contact Finish Thickness	0.15 µm
Contact Material	Copper Alloy
Current Rating (Amps)	0.5 A
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FPC
Height Above Board	2.1 mm
Height Above Board	0.083 "
Housing Color	Natural
Housing Material	Liquid Crystal Polymer (LCP), Halogen Free
Locking Feature	Backlock, Rotary Lock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount, Right Angle
Number of Positions	54
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination	Solder
Voltage Rating	50 V

XF2M Series

Part	Connector/Contact Type	Voltage Rating	Material Flammability Rating	Termination	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Mating Cycles	Current Rating (Amps)	Housing Color	Actuator Color	Number of Positions	Flat Flex Type	FFC, FCB Thickness	Actuator Material	Locking Feature	Housing Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Height Above Board	Height Above Board	Contact Finish	Cable End Type	Contact Material
Omron Electronics Inc-EMC Div XF2M-3815-1A-R100	Contacts Top and Bottom	50 V	UL94 V-0	Solder	0.5 mm	0.02 in	5.9 µin	0.15 µm	20	0.5 A	Natural	Black	38	FPC	0.3 mm	Liquid Crystal Polymer (LCP) Halogen Free	Backlock Rotary Lock	Liquid Crystal Polymer (LCP) Halogen Free	-30 ░C	85 °C	Surface Mount Right Angle	2.1 mm	0.083 "	Gold	Tapered	Copper Alloy
Omron Electronics Inc-EMC Div XF2M-3015-1A	Contacts Top and Bottom	50 V	UL94 V-0	Solder	0.5 mm	0.02 in	5.9 µin	0.15 µm	20	0.5 A	Natural	Black	30	FPC	0.3 mm	Liquid Crystal Polymer (LCP) Halogen Free	Backlock Rotary Lock	Liquid Crystal Polymer (LCP) Halogen Free	-30 ░C	85 °C	Surface Mount Right Angle	2.1 mm	0.083 "	Gold	Tapered	Copper Alloy
Omron Electronics Inc-EMC Div XF2M-2015-1A-R100	Contacts Top and Bottom	50 V	UL94 V-0	Solder	0.5 mm	0.02 in	5.9 µin	0.15 µm	20	0.5 A	Natural	Black	20	FPC	0.3 mm	Liquid Crystal Polymer (LCP) Halogen Free	Backlock Rotary Lock	Liquid Crystal Polymer (LCP) Halogen Free	-30 ░C	85 °C	Surface Mount Right Angle	2.1 mm	0.083 "	Gold	Tapered	Copper Alloy
Omron Electronics Inc-EMC Div XF2M-4515-1A-R100	Contacts Top and Bottom	50 V	UL94 V-0	Solder	0.5 mm	0.02 in	5.9 µin	0.15 µm	20	0.5 A	Natural	Black	45	FPC	0.3 mm	Liquid Crystal Polymer (LCP) Halogen Free	Backlock Rotary Lock	Liquid Crystal Polymer (LCP) Halogen Free	-30 ░C	85 °C	Surface Mount Right Angle	2.1 mm	0.083 "	Gold	Tapered	Copper Alloy
Omron Electronics Inc-EMC Div XF2M-3515-1A	Contacts Top and Bottom	50 V	UL94 V-0	Solder	0.5 mm	0.02 in	5.9 µin	0.15 µm	20	0.5 A	Natural	Black	35	FPC	0.3 mm	Liquid Crystal Polymer (LCP) Halogen Free	Backlock Rotary Lock	Liquid Crystal Polymer (LCP) Halogen Free	-30 ░C	85 °C	Surface Mount Right Angle	2.1 mm	0.083 "	Gold	Tapered	Copper Alloy
Omron Electronics Inc-EMC Div XF2M-4015-1A	Contacts Top and Bottom	50 V	UL94 V-0	Solder	0.5 mm	0.02 in	5.9 µin	0.15 µm	20	0.5 A	Natural	Black	40	FPC	0.3 mm	Liquid Crystal Polymer (LCP) Halogen Free	Backlock Rotary Lock	Liquid Crystal Polymer (LCP) Halogen Free	-30 ░C	85 °C	Surface Mount Right Angle	2.1 mm	0.083 "	Gold	Tapered	Copper Alloy
Omron Electronics Inc-EMC Div XF2M-1215-1A-R100	Contacts Top and Bottom	50 V	UL94 V-0	Solder	0.5 mm	0.02 in	5.9 µin	0.15 µm	20	0.5 A	Natural	Black	12	FPC	0.3 mm	Liquid Crystal Polymer (LCP) Halogen Free	Backlock Rotary Lock	Liquid Crystal Polymer (LCP) Halogen Free	-30 ░C	85 °C	Surface Mount Right Angle	2.1 mm	0.083 "	Gold	Tapered	Copper Alloy
Omron Electronics Inc-EMC Div XF2M-1015-1A	Contacts Top and Bottom	50 V	UL94 V-0	Solder	0.5 mm	0.02 in	5.9 µin	0.15 µm	20	0.5 A	Natural	Black	10	FPC	0.3 mm	Liquid Crystal Polymer (LCP) Halogen Free	Backlock Rotary Lock	Liquid Crystal Polymer (LCP) Halogen Free	-30 ░C	85 °C	Surface Mount Right Angle	2.1 mm	0.083 "	Gold	Tapered	Copper Alloy
Omron Electronics Inc-EMC Div XF2M-5415-1AH	Contacts Top and Bottom	50 V	UL94 V-0	Solder	0.5 mm	0.02 in	5.9 µin	0.15 µm	20	0.5 A	Natural	Black	54	FPC	0.3 mm	Liquid Crystal Polymer (LCP) Halogen Free	Backlock Rotary Lock	Liquid Crystal Polymer (LCP) Halogen Free	-30 ░C	85 °C	Surface Mount Right Angle	2.1 mm	0.083 "	Gold	Tapered	Copper Alloy
Omron Electronics Inc-EMC Div XF2M-3315-1A	Contacts Top and Bottom	50 V	UL94 V-0	Solder	0.5 mm	0.02 in	5.9 µin	0.15 µm	20	0.5 A	Natural	Black	33	FPC	0.3 mm	Liquid Crystal Polymer (LCP) Halogen Free	Backlock Rotary Lock	Liquid Crystal Polymer (LCP) Halogen Free	-30 ░C	85 °C	Surface Mount Right Angle	2.1 mm	0.083 "	Gold	Tapered	Copper Alloy

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.31
		10	$ 3.00
		25	$ 2.85
		50	$ 2.78
		100	$ 2.65
		250	$ 2.32
		500	$ 2.25
	Digi-Reel®	1	$ 3.31
		10	$ 3.00
		25	$ 2.85
		50	$ 2.78
		100	$ 2.65
		250	$ 2.32
		500	$ 2.25
	Tape & Reel (TR)	1500	$ 1.85
		3000	$ 1.79

Description

General part information

XF2M Series

54 Position FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
