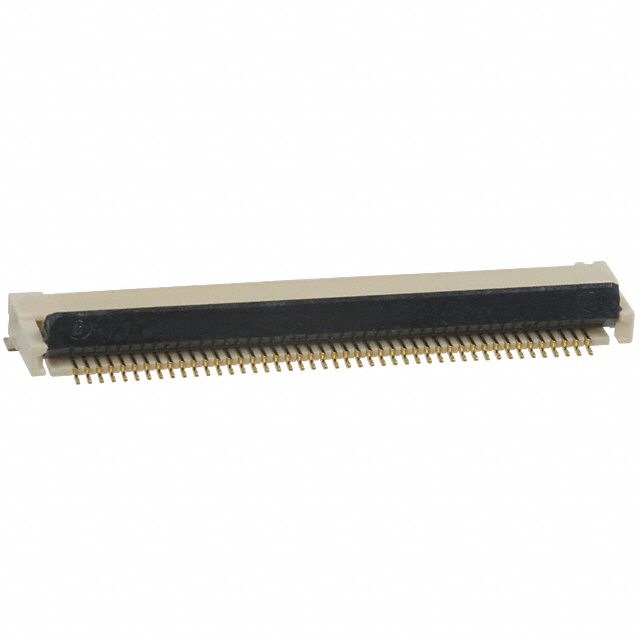

XF2M-4515-1A-R100
ActiveOmron Electronics Inc-EMC Div
CONN FPC 45POS 0.5MM R/A
Deep-Dive with AI
Search across all available documentation for this part.
XF2M-4515-1A-R100
ActiveOmron Electronics Inc-EMC Div
CONN FPC 45POS 0.5MM R/A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XF2M-4515-1A-R100 |
|---|---|
| Actuator Color | Black |
| Actuator Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Cable End Type | Tapered |
| Connector/Contact Type | Contacts, Top and Bottom |
| Contact Finish | Gold |
| Contact Finish Thickness | 5.9 µin |
| Contact Finish Thickness | 0.15 µm |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 0.5 A |
| FFC, FCB Thickness | 0.3 mm |
| Flat Flex Type | FPC |
| Height Above Board | 2.1 mm |
| Height Above Board | 0.083 " |
| Housing Color | Natural |
| Housing Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Locking Feature | Backlock, Rotary Lock |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 45 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
| Termination | Solder |
| Voltage Rating | 50 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 100 | $ 4.65 | |
| 300 | $ 4.07 | |||
| 500 | $ 3.95 | |||
| 1000 | $ 3.37 | |||
| 2500 | $ 3.14 | |||
Description
General part information
XF2M Series
45 Position FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
