19396240447 - 19396240447

19396240447

Active
HARTING Technology Group

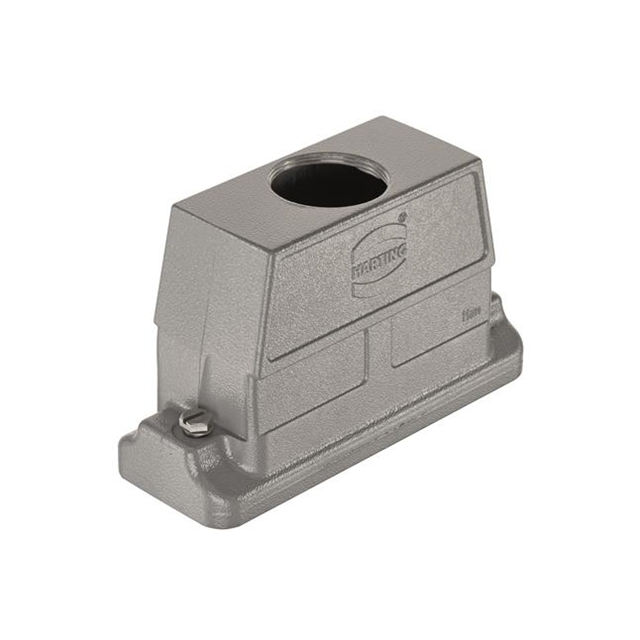

HAN 24 HP DIRECT B HOOD, TOP ENTRY, M32

Deep-Dive with AI

Search across all available documentation for this part.

Documents19396240447 Prod Declaration CertDatasheet+1
19396240447 - 19396240447

19396240447

Active
HARTING Technology Group

HAN 24 HP DIRECT B HOOD, TOP ENTRY, M32

Deep-Dive with AI

Documents19396240447 Prod Declaration CertDatasheet+1

Technical Specifications

Parameters and characteristics for this part

Specification19396240447
Connector TypeHood
Housing ColorGray
Housing FinishPowder Coated
Housing MaterialDie Cast, Aluminum
Ingress ProtectionIP69K, IP66, IP68, Dust Tight, Water Resistant, Waterproof
Lock LocationScrew Locks on Hood
Operating Temperature [Max]125 °C
Operating Temperature [Min]-40 °C
Size24 B
Size / Dimension [x]153 mm
Size / Dimension [x]6.024 in
Size / Dimension [y]2.244 "
Size / Dimension [y]57 mm
Size / Dimension [z]94 mm
Size / Dimension [z]3.701 in
StyleTop Entry
Thread SizeM32

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 94.76
10$ 80.55
25$ 75.51
50$ 71.91
100$ 68.64
NewarkEach 1$ 97.74
10$ 92.25
25$ 89.51
50$ 82.92
100$ 78.53

Description

General part information

19396240 Series

Hood Connector Top Entry M32 24B IP66/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
