19396240547 - 19396240547

19396240547

Active
HARTING Technology Group

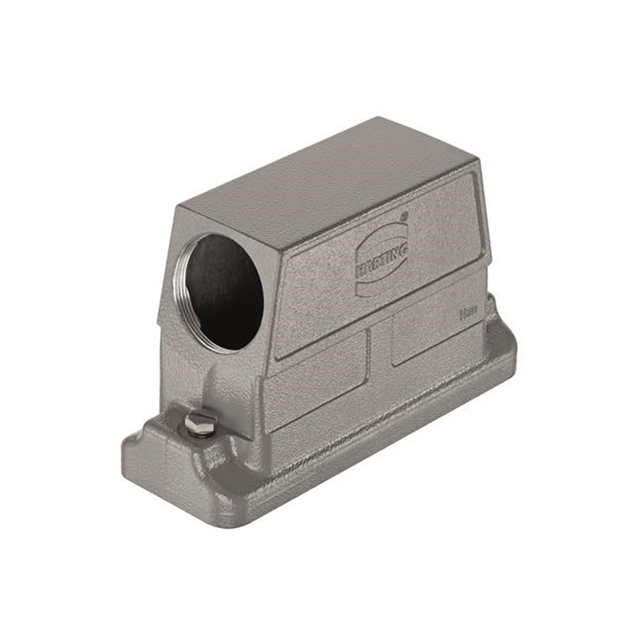

HAN 24 HP DIRECT B HOOD, SIDE ENTRY, M32

Deep-Dive with AI

DocumentsTechnical Data Sheet ENDatasheet+1

Technical Specifications

Parameters and characteristics for this part

Specification19396240547
Connector TypeHood
Housing ColorGray
Housing FinishPowder Coated
Housing MaterialDie Cast, Aluminum
Ingress ProtectionIP69K, IP66, IP68, Dust Tight, Water Resistant, Waterproof
Lock LocationScrew Locks on Hood
Operating Temperature [Max]125 °C
Operating Temperature [Min]-40 °C
Size24 B
Size / Dimension [x]153 mm
Size / Dimension [x]6.024 in
Size / Dimension [y]2.244 "
Size / Dimension [y]57 mm
Size / Dimension [z]3.74 in
Size / Dimension [z]95 mm
StyleSide Entry
Thread SizeM32

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 120.05
10$ 91.20
25$ 82.83
50$ 77.39
100$ 72.61
NewarkEach 1$ 97.82
10$ 92.32
25$ 89.57
50$ 82.98
100$ 78.58

Description

General part information

19396240 Series

Hood Connector Side Entry M32 24B IP66/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
