Technical Specifications

Parameters and characteristics for this part

Specification	0015979161

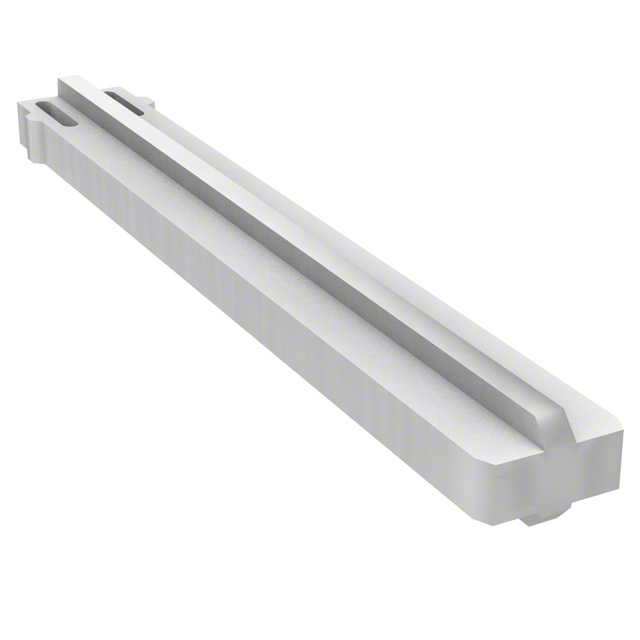

Accessory Type	Retention Key
For Use With/Related Products	Mini-Fit Jr Series
Number of Positions	16

001597 Series

Mini-Fit TPA Header, 4.20mm Pitch, Dual Row, Vertical, with PCB Mounting Flange, 16 Circuits, Tin (Sn) Plating, without Drain Holes

Part	Insulation Material	Color	Mounting Type	Number of Rows	Fastening Type	Note	Contact Type	Connector Type	Pitch [x]	Pitch [x]	Row Spacing [x]	Row Spacing	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Number of Positions	Accessory Type	For Use With/Related Products	Row Spacing - Mating	Row Spacing - Mating	Style	Shrouding	Material Flammability Rating	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Contact Shape	Insulation Color	Applications	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Contact Material	Number of Positions Loaded	Insulation Height	Insulation Height	Mated Stacking Heights	Voltage Rating	Current Rating (Amps)	Contact Length - Post	Overall Contact Length	Overall Contact Length	Features	Contact Finish - Mating
Molex 0015976161	Polyester	Black	Free Hanging (In-Line)	2	Locking Ramp	Contacts Not Included	Male Pin	Plug	4.2 mm	0.165 in	0.217 in	5.51 mm	16	-40 °C	105 ░C	Crimp
Molex 0015979101																	10	Retention Key	Mini-Fit Jr Series
Molex 0015978043	Polyester		Through Hole Right Angle	2	Locking Ramp		Male Pin	Header									4			0.217 in	5.51 mm	Board to Cable/Wire	Shrouded - 4 Wall	UL94 V-0	Solder	2.54 µm	100 µin	2.54 çm	100 çin	4.2 mm	0.165 in	Square	Black	Automotive Industrial Telecommunications	Tin	0.157 in	4 mm	Brass	All	11.7 mm	0.461 "
Molex 15977102
Molex 0015978082	Polyester		Through Hole	2	Latch Lock		Male Pin	Header						-40 °C	105 ░C		8			0.217 in	5.51 mm	Board to Cable/Wire	Shrouded - 4 Wall	UL94 V-0	Solder			2.54 çm	100 çin	4.2 mm	0.165 in	Square	Black		Tin		4.09 mm	Brass Alloy	All	11.71 mm	0.461 "	5 mm	600 VAC	Varies by Wire Gauge	0.161 in	0.709 in	18 mm
Molex 0015977042	Polyester		Through Hole	2	Locking Ramp		Male Pin	Header									4			0.217 in	5.51 mm	Board to Cable/Wire	Shrouded - 4 Wall	UL94 V-0	Solder	0.9 µm	35 µin	0.9 µm	35.4 µin	4.2 mm	0.165 in	Square	Black	Automotive Industrial Telecommunications	Tin	0.138 in	3.5 mm	Brass Alloy	All	12.8 mm	0.504 in							Mounting Flange
Molex 0015979161													16					Retention Key	Mini-Fit Jr Series
Molex 0015977122	Polyester		Through Hole	2	Locking Ramp		Male Pin	Header									12			0.217 in	5.51 mm	Board to Cable/Wire	Shrouded - 4 Wall	UL94 V-0	Solder	2.54 µm	100 µin	0.9 µm	35.4 µin	4.2 mm	0.165 in	Square	Black	Automotive Industrial Telecommunications	Tin	0.138 in	3.5 mm	Brass Alloy	All	12.8 mm	0.504 in							Mounting Flange
Molex 0015978087	Polyester		Through Hole Right Angle	2	Locking Ramp		Male Pin	Header									8			0.217 in	5.51 mm	Board to Cable/Wire	Shrouded - 4 Wall	UL94 V-0	Solder	2.54 µm	100 µin	0.76 Ám	30 Áin	4.2 mm	0.165 in	Square	Black	Automotive Industrial Telecommunications	Tin	0.157 in	4 mm	Brass	All	11.7 mm	0.461 "							Mounting Flange	Gold
Molex 0015978167	Polyester		Through Hole Right Angle	2	Locking Ramp		Male Pin	Header					16							0.217 in	5.51 mm	Board to Cable/Wire	Shrouded - 4 Wall	UL94 V-0	Solder	2.54 µm	100 µin	0.76 Ám	30 Áin	4.2 mm	0.165 in	Square	Black	Automotive Industrial Telecommunications	Tin	0.157 in	4 mm	Brass	All	11.7 mm	0.461 "							Mounting Flange	Gold
