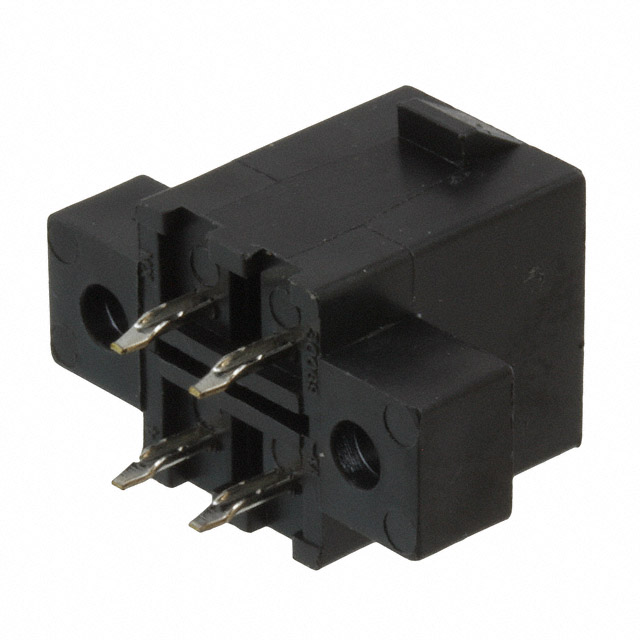

0015977042

Obsolete

Molex

CONN HEADER VERT 4POS 4.2MM

Deep-Dive with AI

Search across all available documentation for this part.

Documents5556-003 Product Spec Datasheet

0015977042

Obsolete

Molex

CONN HEADER VERT 4POS 4.2MM

Deep-Dive with AI

Documents5556-003 Product Spec Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0015977042

Applications	Telecommunications, Industrial, Automotive
Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	35.4 µin
Contact Finish Thickness - Mating	0.9 µm
Contact Finish Thickness - Post	35 µin
Contact Finish Thickness - Post	0.9 µm
Contact Length - Post	3.5 mm
Contact Length - Post	0.138 in
Contact Material	Brass Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Locking Ramp
Features	Mounting Flange
Insulation Color	Black
Insulation Height	12.8 mm
Insulation Height	0.504 in
Insulation Material	Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating	4.2 mm
Pitch - Mating	0.165 in
Row Spacing - Mating	0.217 in
Row Spacing - Mating	5.51 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

001597 Series

Mini-Fit TPA Header, 4.20mm Pitch, Dual Row, Vertical, with PCB Mounting Flange, 16 Circuits, Tin (Sn) Plating, without Drain Holes

Part	Insulation Material	Color	Mounting Type	Number of Rows	Fastening Type	Note	Contact Type	Connector Type	Pitch [x]	Pitch [x]	Row Spacing [x]	Row Spacing	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Number of Positions	Accessory Type	For Use With/Related Products	Row Spacing - Mating	Row Spacing - Mating	Style	Shrouding	Material Flammability Rating	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Contact Shape	Insulation Color	Applications	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Contact Material	Number of Positions Loaded	Insulation Height	Insulation Height	Mated Stacking Heights	Voltage Rating	Current Rating (Amps)	Contact Length - Post	Overall Contact Length	Overall Contact Length	Features	Contact Finish - Mating
Molex 0015976161	Polyester	Black	Free Hanging (In-Line)	2	Locking Ramp	Contacts Not Included	Male Pin	Plug	4.2 mm	0.165 in	0.217 in	5.51 mm	16	-40 °C	105 ░C	Crimp
Molex 0015979101																	10	Retention Key	Mini-Fit Jr Series
Molex 0015978043	Polyester		Through Hole Right Angle	2	Locking Ramp		Male Pin	Header									4			0.217 in	5.51 mm	Board to Cable/Wire	Shrouded - 4 Wall	UL94 V-0	Solder	2.54 µm	100 µin	2.54 çm	100 çin	4.2 mm	0.165 in	Square	Black	Automotive Industrial Telecommunications	Tin	0.157 in	4 mm	Brass	All	11.7 mm	0.461 "
Molex 15977102
Molex 0015978082	Polyester		Through Hole	2	Latch Lock		Male Pin	Header						-40 °C	105 ░C		8			0.217 in	5.51 mm	Board to Cable/Wire	Shrouded - 4 Wall	UL94 V-0	Solder			2.54 çm	100 çin	4.2 mm	0.165 in	Square	Black		Tin		4.09 mm	Brass Alloy	All	11.71 mm	0.461 "	5 mm	600 VAC	Varies by Wire Gauge	0.161 in	0.709 in	18 mm
Molex 0015977042	Polyester		Through Hole	2	Locking Ramp		Male Pin	Header									4			0.217 in	5.51 mm	Board to Cable/Wire	Shrouded - 4 Wall	UL94 V-0	Solder	0.9 µm	35 µin	0.9 µm	35.4 µin	4.2 mm	0.165 in	Square	Black	Automotive Industrial Telecommunications	Tin	0.138 in	3.5 mm	Brass Alloy	All	12.8 mm	0.504 in							Mounting Flange
Molex 0015979161													16					Retention Key	Mini-Fit Jr Series
Molex 0015977122	Polyester		Through Hole	2	Locking Ramp		Male Pin	Header									12			0.217 in	5.51 mm	Board to Cable/Wire	Shrouded - 4 Wall	UL94 V-0	Solder	2.54 µm	100 µin	0.9 µm	35.4 µin	4.2 mm	0.165 in	Square	Black	Automotive Industrial Telecommunications	Tin	0.138 in	3.5 mm	Brass Alloy	All	12.8 mm	0.504 in							Mounting Flange
Molex 0015978087	Polyester		Through Hole Right Angle	2	Locking Ramp		Male Pin	Header									8			0.217 in	5.51 mm	Board to Cable/Wire	Shrouded - 4 Wall	UL94 V-0	Solder	2.54 µm	100 µin	0.76 Ám	30 Áin	4.2 mm	0.165 in	Square	Black	Automotive Industrial Telecommunications	Tin	0.157 in	4 mm	Brass	All	11.7 mm	0.461 "							Mounting Flange	Gold
Molex 0015978167	Polyester		Through Hole Right Angle	2	Locking Ramp		Male Pin	Header					16							0.217 in	5.51 mm	Board to Cable/Wire	Shrouded - 4 Wall	UL94 V-0	Solder	2.54 µm	100 µin	0.76 Ám	30 Áin	4.2 mm	0.165 in	Square	Black	Automotive Industrial Telecommunications	Tin	0.157 in	4 mm	Brass	All	11.7 mm	0.461 "							Mounting Flange	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

001597 Series

Mini-Fit TPA Header, 4.20mm Pitch, Dual Row, Vertical, with PCB Mounting Flange, 16 Circuits, Tin (Sn) Plating, without Drain Holes

Documents

Technical documentation and resources

5556-003 Product Spec

Datasheet
