3210-20-003-12-00
ActiveCnC Tech, LLC

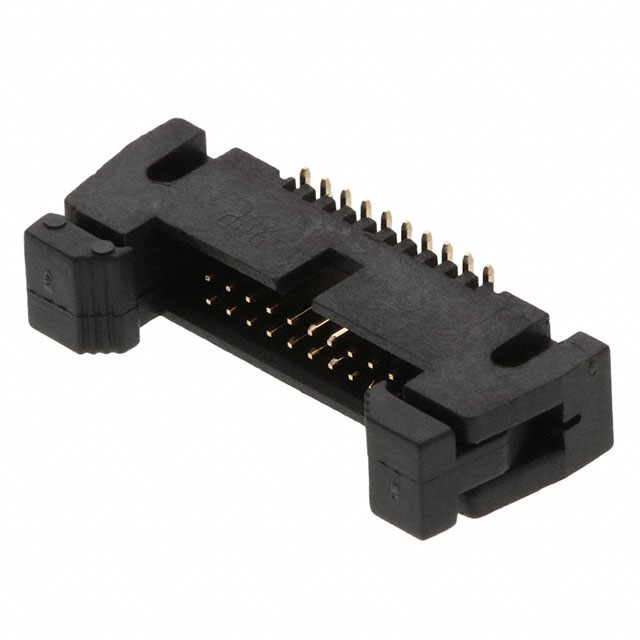

CONN HEADER SMD 20POS 1.27MM
Deep-Dive with AI
Search across all available documentation for this part.
3210-20-003-12-00
ActiveCnC Tech, LLC
CONN HEADER SMD 20POS 1.27MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3210-20-003-12-00 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Latch Lock/Eject Hooks, Short |
| Features | Keying Slot |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 20 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Row Spacing - Mating | 0.05 in |
| Row Spacing - Mating | 1.27 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.58 | |
| 10 | $ 2.34 | |||
| 80 | $ 2.06 | |||
| 440 | $ 1.75 | |||
| 1800 | $ 1.44 | |||
| 5400 | $ 1.34 | |||
Description
General part information
3210-20 Series
Connector Header Surface Mount 20 position 0.050" (1.27mm)
