3210-20-001-12-00

Active

CnC Tech, LLC

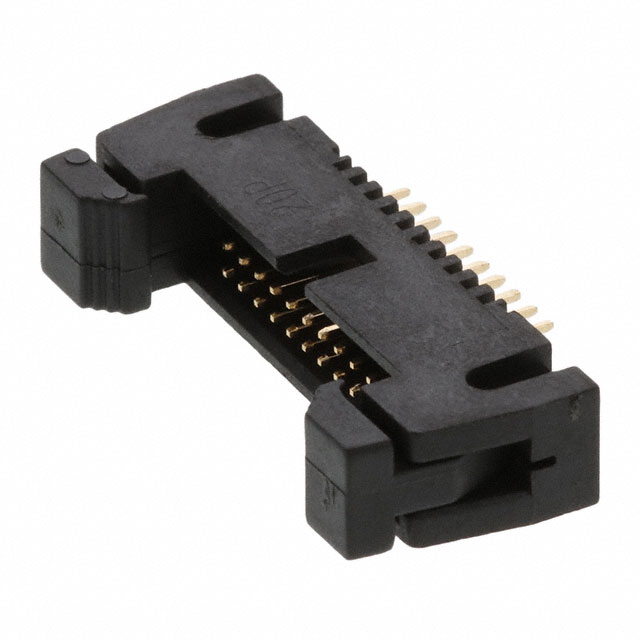

CONN EJECTOR HEADER HDR 20 POS 1.27MM SOLDER ST THRU-HOLE

Deep-Dive with AI

Search across all available documentation for this part.

Documents3210-xx-001-12-00 Drawing PRIOR TO 20/06 IDC Header Mating Guide +1

3210-20-001-12-00

Active

CnC Tech, LLC

CONN EJECTOR HEADER HDR 20 POS 1.27MM SOLDER ST THRU-HOLE

Deep-Dive with AI

Documents3210-xx-001-12-00 Drawing PRIOR TO 20/06 IDC Header Mating Guide +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3210-20-001-12-00

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Length - Post	0.094 in
Contact Length - Post	2.4 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Latch Lock/Eject Hooks, Short
Insulation Material	Polyamide (PA6T), Nylon 6T, Polyamide (PA9T), Nylon 9T
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

3210-20 Series

Part	Contact Material	Material Flammability Rating	Contact Type	Shrouding	Connector Type	Features	Number of Rows	Contact Finish - Mating	Termination	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Fastening Type	Contact Finish Thickness - Mating	Number of Positions	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Insulation Material	Mounting Type	Style	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height
CnC Tech, LLC 3210-20-003-11-00	Brass	UL94 V-0	Male Pin	Shrouded - 2 Wall	Header	Keying Slot	2	Gold	Solder	0.05 in	1.27 mm	All	Push-Pull	Flash	20	Square	0.05 in	1.27 mm	Polybutylene Terephthalate (PBT)	Surface Mount	Board to Cable/Wire	-40 °C	105 ░C
CnC Tech, LLC 3210-20-002-12-00	Brass	UL94 V-0	Male Pin	Shrouded - 4 Wall	Header		2	Gold	Solder	0.05 in	1.27 mm	All	Latch Lock/Eject Hooks Short	Flash	20	Square	0.05 in	1.27 mm	Polyamide (PA6T) Nylon 6T Polyamide (PA9T) Nylon 9T	Through Hole Right Angle	Board to Cable/Wire	-40 °C	105 ░C	0.094 in	2.4 mm	5.6 mm	0.22 in
CnC Tech, LLC 3210-20-001-12-00	Brass	UL94 V-0	Male Pin	Shrouded - 4 Wall	Header		2	Gold	Solder	0.05 in	1.27 mm	All	Latch Lock/Eject Hooks Short	Flash	20	Square	0.05 in	1.27 mm	Polyamide (PA6T) Nylon 6T Polyamide (PA9T) Nylon 9T	Through Hole	Board to Cable/Wire	-40 °C	105 ░C	0.094 in	2.4 mm
CnC Tech, LLC 3210-20-002-11-00	Brass	UL94 V-0	Male Pin	Shrouded - 2 Wall	Header		2	Gold	Solder	0.05 in	1.27 mm	All	Push-Pull	Flash	20	Square	0.05 in	1.27 mm	Polybutylene Terephthalate (PBT)	Through Hole Right Angle	Board to Cable/Wire	-40 °C	105 ░C	0.094 in	2.4 mm	5.6 mm	0.22 in
CnC Tech, LLC 3210-20-003-12-00	Brass	UL94 V-0	Male Pin	Shrouded - 4 Wall	Header	Keying Slot	2	Gold	Solder	0.05 in	1.27 mm	All	Latch Lock/Eject Hooks Short	Flash	20	Square	0.05 in	1.27 mm	Polybutylene Terephthalate (PBT)	Surface Mount	Board to Cable/Wire	-40 °C	105 ░C
CnC Tech, LLC 3210-20-001-11-00	Brass	UL94 V-0	Male Pin	Shrouded - 2 Wall	Header	Keying Slot	2	Gold	Solder	0.05 in	1.27 mm	All	Push-Pull	Flash	20	Square	0.05 in	1.27 mm	Polybutylene Terephthalate (PBT)	Through Hole	Board to Cable/Wire	-40 °C	105 ░C	0.094 in	2.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 0.18
		10	$ 0.18
		100	$ 0.18
		500	$ 0.18
Digikey	Tray	1	$ 1.77
		10	$ 1.54
		80	$ 1.38
		440	$ 1.15
		1800	$ 0.95
		5400	$ 0.87
		10800	$ 0.85

Description

General part information

3210-20 Series

Connector Header Through Hole 20 position 0.050" (1.27mm)

Documents

Technical documentation and resources

3210-xx-001-12-00 Drawing PRIOR TO 20/06

Datasheet

IDC Header Mating Guide

Datasheet
