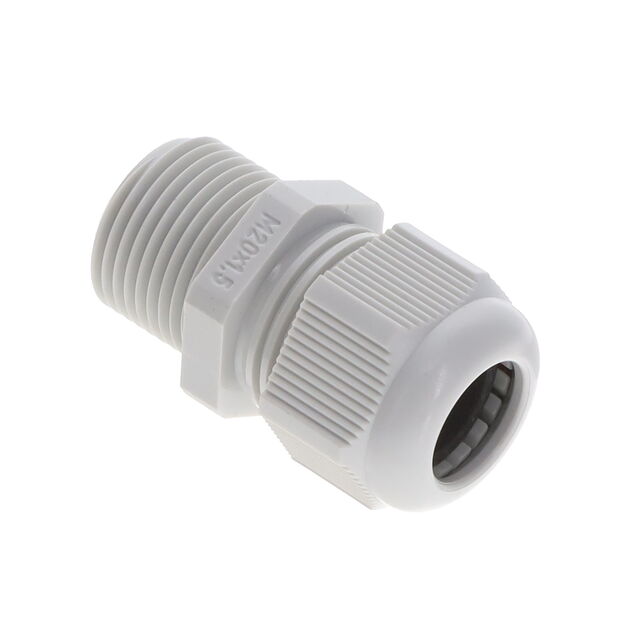

50.620 PA7035L

Active

Jacob GmbH

CABLE GLAND 8-13MM M20 POLYAMIDE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

50.620 PA7035L

Active

Jacob GmbH

CABLE GLAND 8-13MM M20 POLYAMIDE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	50.620 PA7035L

Color	Gray
Includes	Sealing Ring
Ingress Protection	IP68 - Dust Tight, Waterproof
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.512 in
Outside Cable Diameter (Max) [Max] [diameter]	13 mm
Outside Cable Diameter (Min) [Min] [diameter]	8 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.315 in
Thread Length	0.591 in
Thread Length	15 mm
Thread Size	M20x1.5
Type	Cable Gland

50.62 Series

Part	Material	Color	Thread Length	Thread Length	Ingress Protection	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Thread Size	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Includes	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]
Jacob GmbH 50.620 ES	Stainless Steel	Silver	0.236 in	6 mm	IP68 - Dust Tight Waterproof	0.512 in	13 mm	Cable Gland	100 °C	-40 °C	M20x1.5	9 mm	0.354 in	O-Ring Seal
Jacob GmbH 50.620 M/BS	Brass Nickel Plated	Silver	0.236 in	6 mm	IP68 - Dust Tight Waterproof	0.512 in	13 mm	Cable Gland	100 °C	-20 C	M20x1.5	9 mm	0.354 in	O-Ring Seal Strain Relief
Jacob GmbH 50.620 PA/RSW		Black	0.315 in	8 mm	IP68 - Dust Tight Waterproof	0.512 in	13 mm	Cable Gland	100 °C	-40 °C	M20x1.5			Sealing Ring	5 mm	0.197 in
Jacob GmbH 50.620 M/EMVD	Brass Nickel Plated	Silver	0.236 in	6 mm	IP68 - Dust Tight Waterproof	0.512 in	13 mm	Cable Gland	100 °C	-40 °C	M20x1.5	9 mm	0.354 in	O-Ring Seal
Jacob GmbH 50.620 M/R/AV	Brass Nickel Plated	Silver	0.236 in	6 mm	IP66/IP68	0.512 in	13 mm	Cable Gland	100 °C	-20 C	M20x1.5			O-Ring Seal	5 mm	0.197 in
Jacob GmbH 50.620 M/AV	Brass Nickel Plated	Silver	0.236 in	6 mm	IP66/IP68	0.512 in	13 mm	Cable Gland	100 °C	-20 C	M20x1.5	9 mm	0.354 in	O-Ring Seal
Jacob GmbH 50.620 PA/FL		Gray	0.315 in	8 mm	IP68 - Dust Tight Waterproof	0.512 in	13 mm	Cable Gland	100 °C	-40 °C	M20x1.5	8 mm	0.315 in	Sealing Ring
Jacob GmbH 50.620PA/R7035		Gray	0.315 in	8 mm	IP68 - Dust Tight Waterproof	0.512 in	13 mm	Cable Gland	100 °C	-40 °C	M20x1.5			Sealing Ring	5 mm	0.197 in
Jacob GmbH 50.620 PA/SW		Black	0.315 in	8 mm	IP68 - Dust Tight Waterproof	0.512 in	13 mm	Cable Gland	100 °C	-40 °C	M20x1.5	8 mm	0.315 in	Sealing Ring
Jacob GmbH 50.620 PA7035L		Gray	0.591 in	15 mm	IP68 - Dust Tight Waterproof	0.512 in	13 mm	Cable Gland	100 °C	-40 °C	M20x1.5	8 mm	0.315 in	Sealing Ring

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 1.66
		10	$ 1.26
		25	$ 1.14
		50	$ 1.05
		100	$ 0.97
		300	$ 0.86
		500	$ 0.82
		1000	$ 0.76
		2500	$ 0.69

Description

General part information

50.62 Series

Cable Gland Polyamide (PA6), Nylon 6 M20x1.5 Gray
