50.620 M/R/AV

Active

Jacob GmbH

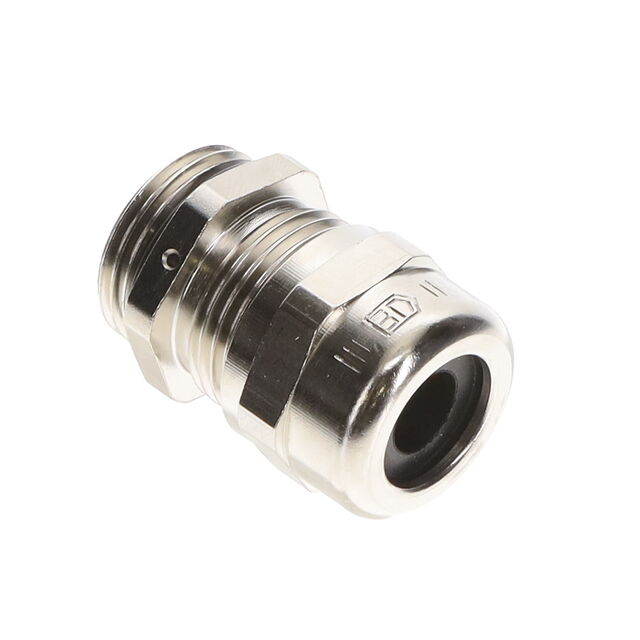

CABLE GLAND 5-13MM M20 BRASS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

50.620 M/R/AV

Active

Jacob GmbH

CABLE GLAND 5-13MM M20 BRASS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	50.620 M/R/AV

Color	Silver
Includes	O-Ring, Seal
Ingress Protection	IP66/IP68
Material	Brass, Nickel Plated
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-20 C
Outside Cable Diameter (Max) [Max] [diameter]	0.512 in
Outside Cable Diameter (Max) [Max] [diameter]	13 mm
Outside Cable Diameter (Min) [Min]	5 mm
Outside Cable Diameter (Min) [Min]	0.197 in
Thread Length	0.236 in
Thread Length	6 mm
Thread Size	M20x1.5
Type	Cable Gland

50.62 Series

Part	Material	Color	Thread Length	Thread Length	Ingress Protection	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Thread Size	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Includes	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]
Jacob GmbH 50.620 ES	Stainless Steel	Silver	0.236 in	6 mm	IP68 - Dust Tight Waterproof	0.512 in	13 mm	Cable Gland	100 °C	-40 °C	M20x1.5	9 mm	0.354 in	O-Ring Seal
Jacob GmbH 50.620 M/BS	Brass Nickel Plated	Silver	0.236 in	6 mm	IP68 - Dust Tight Waterproof	0.512 in	13 mm	Cable Gland	100 °C	-20 C	M20x1.5	9 mm	0.354 in	O-Ring Seal Strain Relief
Jacob GmbH 50.620 PA/RSW		Black	0.315 in	8 mm	IP68 - Dust Tight Waterproof	0.512 in	13 mm	Cable Gland	100 °C	-40 °C	M20x1.5			Sealing Ring	5 mm	0.197 in
Jacob GmbH 50.620 M/EMVD	Brass Nickel Plated	Silver	0.236 in	6 mm	IP68 - Dust Tight Waterproof	0.512 in	13 mm	Cable Gland	100 °C	-40 °C	M20x1.5	9 mm	0.354 in	O-Ring Seal
Jacob GmbH 50.620 M/R/AV	Brass Nickel Plated	Silver	0.236 in	6 mm	IP66/IP68	0.512 in	13 mm	Cable Gland	100 °C	-20 C	M20x1.5			O-Ring Seal	5 mm	0.197 in
Jacob GmbH 50.620 M/AV	Brass Nickel Plated	Silver	0.236 in	6 mm	IP66/IP68	0.512 in	13 mm	Cable Gland	100 °C	-20 C	M20x1.5	9 mm	0.354 in	O-Ring Seal
Jacob GmbH 50.620 PA/FL		Gray	0.315 in	8 mm	IP68 - Dust Tight Waterproof	0.512 in	13 mm	Cable Gland	100 °C	-40 °C	M20x1.5	8 mm	0.315 in	Sealing Ring
Jacob GmbH 50.620PA/R7035		Gray	0.315 in	8 mm	IP68 - Dust Tight Waterproof	0.512 in	13 mm	Cable Gland	100 °C	-40 °C	M20x1.5			Sealing Ring	5 mm	0.197 in
Jacob GmbH 50.620 PA/SW		Black	0.315 in	8 mm	IP68 - Dust Tight Waterproof	0.512 in	13 mm	Cable Gland	100 °C	-40 °C	M20x1.5	8 mm	0.315 in	Sealing Ring
Jacob GmbH 50.620 PA7035L		Gray	0.591 in	15 mm	IP68 - Dust Tight Waterproof	0.512 in	13 mm	Cable Gland	100 °C	-40 °C	M20x1.5	8 mm	0.315 in	Sealing Ring

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 29.03
		10	$ 22.40
		25	$ 20.29
		50	$ 18.87
		100	$ 17.58
		250	$ 16.06
		500	$ 15.04

Description

General part information

50.62 Series

Cable Gland Brass, Nickel Plated M20x1.5 Silver
