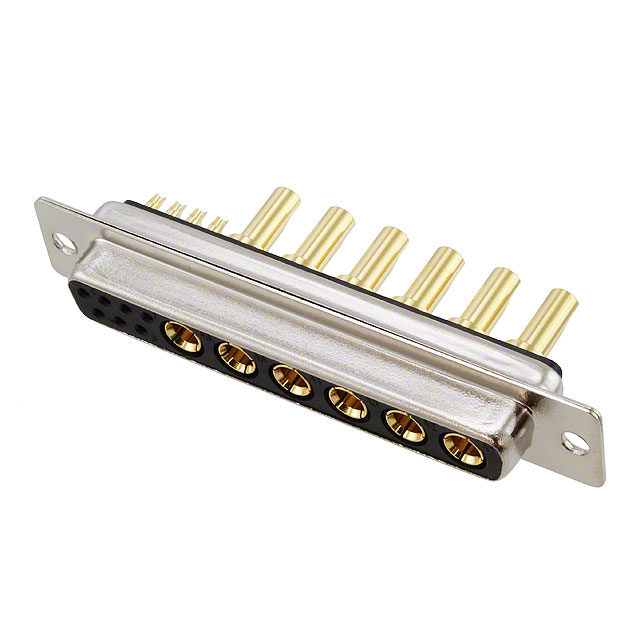

ActiveCOMBINATION LAYOUT D SUB CONNECTOR, POWER-D 680M SERIES, DC-13W6, 7 CONTACTS, RECEPTACLE, 6
Deep-Dive with AI
Search across all available documentation for this part.
680M13W6203L201
ActiveCOMBINATION LAYOUT D SUB CONNECTOR, POWER-D 680M SERIES, DC-13W6, 7 CONTACTS, RECEPTACLE, 6
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 680M13W6203L201 |
|---|---|
| Color | Black |
| Connector Style | D-Sub, Combo |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Contact Type | Signal and Power |
| Current Rating (Amps) | 5 A, 20 A |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Flange Feature | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 13 |
| Number of Positions [custom] | 6 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 13W6, 4 (DC, C) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
680M13W Series
The 680M series POWER-D solder cup Mixed D-sub Connectors with machined copper alloy, full gold flash signal and power contacts with glass-filled thermoplastic insulator and nickel-plated, steel shell. It is available in 12 industry standard contact arrangements are 3W3, 3W3K, 5W1, 5W5, 7W2, 9W4, 11W1, 13W3, 13W6, 17W2, 21W1 and 21WA4.
