680M13W3103L201 - 680M13W3103L201

680M13W3103L201

Active
MH Connectors

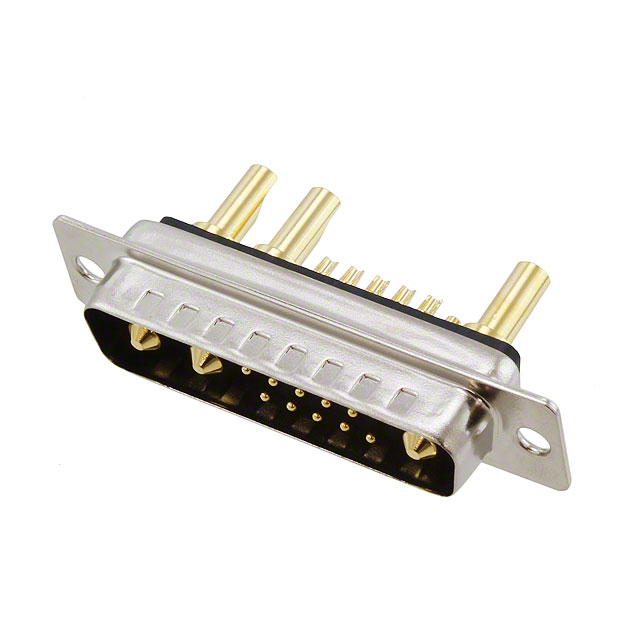

COMBO D-SUB CONN, PLUG, DB-13W3, CABLE ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetMiscellaneous EN+2
680M13W3103L201 - 680M13W3103L201

680M13W3103L201

Active
MH Connectors

COMBO D-SUB CONN, PLUG, DB-13W3, CABLE ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheetMiscellaneous EN+2

Technical Specifications

Parameters and characteristics for this part

Specification680M13W3103L201
ColorBlack
Connector StyleD-Sub, Combo
Connector TypePlug, Male Pins
Contact FinishGold
Contact Finish ThicknessFlash
Contact MaterialCopper Alloy
Contact TypeSignal and Power
Current Rating (Amps)5 A, 20 A
Dielectric MaterialPolybutylene Terephthalate (PBT)
FeaturesGrounding Indents
Flange FeatureHousing/Shell (Unthreaded)
Material Flammability RatingUL94 V-0
Number of Positions [custom]10
Number of Positions [custom]3
Number of Rows2
Operating Temperature [Max]155 °C
Operating Temperature [Min]-55 °C
Shell Material, FinishNickel Plated, Steel
Shell Size, Connector Layout13W3, 13C3, B, DB
Shell Size, Connector Layout3

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 12.80
10$ 11.34
25$ 10.91
50$ 10.47
100$ 9.89
250$ 9.02
450$ 8.44
950$ 7.74
NewarkEach 1$ 12.79
10$ 11.34
25$ 11.12
50$ 10.90
100$ 9.88
250$ 9.01

Description

General part information

680M13W Series

13 (10 + 3 Power) Position D-Sub, Combo Plug, Male Pins Connector
