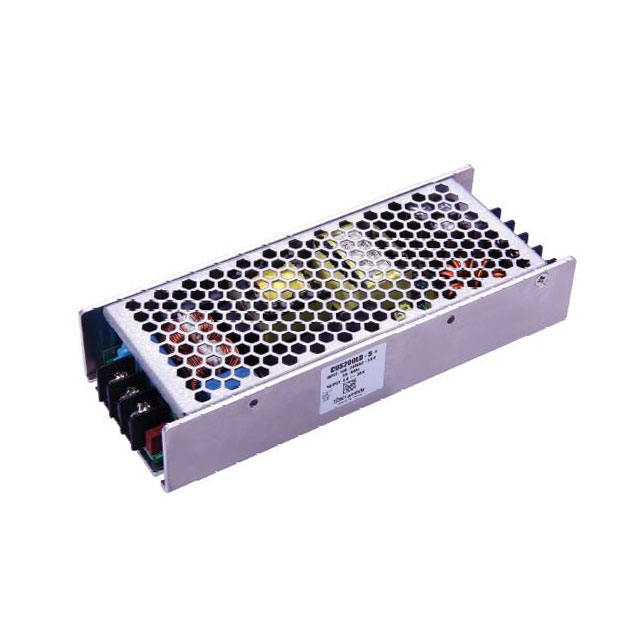

CUS200LD-7R5
ActiveTDK-LAMBDA
AC/DC ENCLOSED POWER SUPPLY (PSU), 1 OUTPUTS, 120 W, 7.5 V, 16 A
Deep-Dive with AI
Search across all available documentation for this part.
CUS200LD-7R5
ActiveTDK-LAMBDA
AC/DC ENCLOSED POWER SUPPLY (PSU), 1 OUTPUTS, 120 W, 7.5 V, 16 A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CUS200LD-7R5 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output 1 | 16 A |
| Efficiency | 88 % |
| Features | Adjustable Output, Universal Input |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Size / Dimension [x] | 160 mm |
| Size / Dimension [x] | 6.3 " |
| Size / Dimension [y] | 62 mm |
| Size / Dimension [y] | 2.44 " |
| Size / Dimension [z] | 1.22 in |
| Size / Dimension [z] | 31 mm |
| Type | Enclosed |
| Voltage - Input [Max] | 265 VAC |
| Voltage - Input [Min] | 85 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 7.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
CUS200 Series
The CUS200LD7R5 from TDK-Lambda is a single output power supply. CUS200M series of power supplies are ideal for applications where audible fan noise is not desired. Approved by IEC/UL/CSA/EN 60950-1, EN55011-B, EN55032-B, FCC Class B and CE mark.
