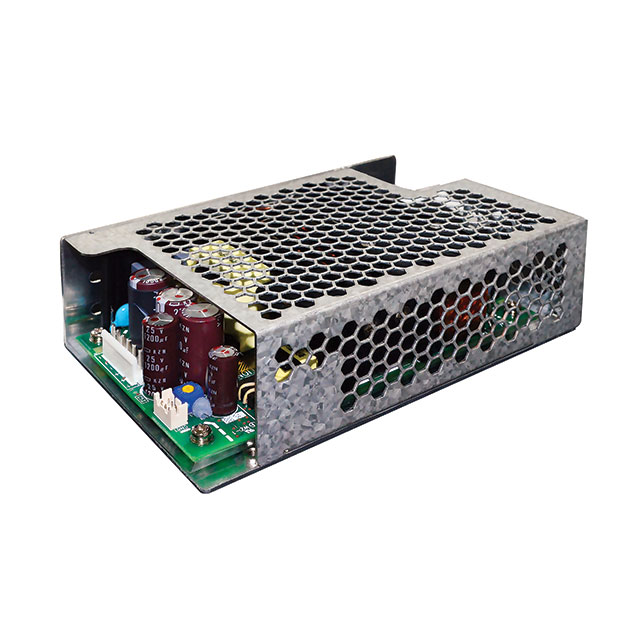

CUS200M-12/A
ActiveAC/DC ENCLOSED POWER SUPPLY (PSU), MEDICAL, 1 OUTPUTS, 200.4 W, 12 V, 16.7 A
Deep-Dive with AI
Search across all available documentation for this part.
CUS200M-12/A
ActiveAC/DC ENCLOSED POWER SUPPLY (PSU), MEDICAL, 1 OUTPUTS, 200.4 W, 12 V, 16.7 A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CUS200M-12/A |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | CE |
| Current - Output 1 | 16.7 A |
| Efficiency | 93 % |
| Features | PFC, Universal Input, Adjustable Output, Standby Output, Remote On/Off |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Power (Watts) | 200 W |
| Size / Dimension [x] | 5.5 in |
| Size / Dimension [x] | 139.7 mm |
| Size / Dimension [y] | 90 mm |
| Size / Dimension [y] | 3.54 in |
| Size / Dimension [z] | 43 mm |
| Size / Dimension [z] | 1.69 in |
| Standard Number | 60950-1, 60601-1, 62368-1 |
| Type | Enclosed |
| Voltage - Input [Max] | 265 VAC |
| Voltage - Input [Min] | 85 VAC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
CUS200 Series
CUS200M-12/A is a CUS200M series single output medical & ITE power supply. The CUS200M is ideal for applications where audible noise cannot be tolerated, including hospital, dental, broadcast and professional audio equipment. A 5V 0.6A standby output, DC Good signal and remote on/off are provided as standard.
