19443100303
ActiveHARTING Technology Group
HEAVY DUTY CONNECTOR, HINGED COVER, BASE, PANEL MOUNT, STAINLESS STEEL BODY, 2 LEVER, 10B
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 19443100303 |
|---|---|
| Connector Type | Base - Panel Mount |
| Features | Cover |
| Housing Material | Stainless Steel |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (1) on Base Bottom |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | 10B |
| Size / Dimension [x] | 3.709 " |
| Size / Dimension [x] | 94.2 mm |
| Size / Dimension [y] | 1.736 " |
| Size / Dimension [y] | 44.1 mm |
| Size / Dimension [z] | 1.157 " |
| Size / Dimension [z] | 29.4 mm |
| Style | Bottom Entry |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
19443100 Series

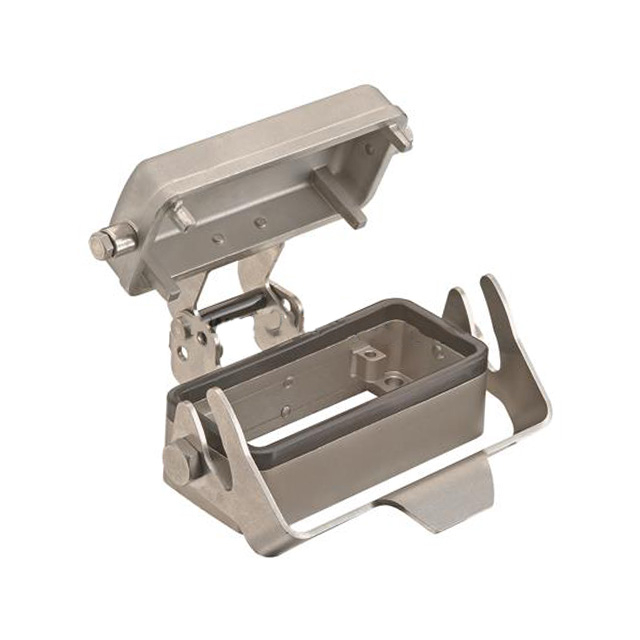

The 19443100303 is a Bulkhead mounted Housing with protection cover. It has stainless steel double locking lever and NBR seal.
