19443100757

Active

HARTING Technology Group

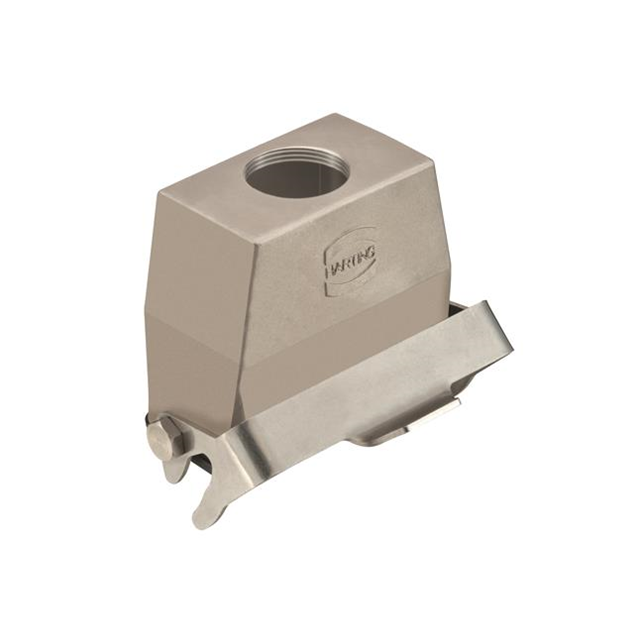

HEAVY DUTY CONNECTOR, COUPLER, M32 TOP ENTRY, HOOD, TOP ENTRY, STAINLESS STEEL BODY, 2 LEVER, 10B

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, COUPLER, M32 TOP ENTRY, HOOD, TOP ENTRY, STAINLESS STEEL BODY, 2 LEVER, 10B

Technical Specifications

Parameters and characteristics for this part

Specification	19443100757

Connector Type	Hood - Coupling
Features	Cable to Cable
Housing Material	Stainless Steel
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Hood Top
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	10B
Size / Dimension [x]	3.681 "
Size / Dimension [x]	93.5 mm
Size / Dimension [y]	43 mm
Size / Dimension [y]	1.693 in
Size / Dimension [z]	77.4 mm
Size / Dimension [z]	3.047 "
Style	Bottom Entry
Thread Size	M32

Part	Operating Temperature [Max]	Operating Temperature [Min]	Thread Size	Size	Connector Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Ingress Protection	Lock Location	Housing Material	Style	Features
HARTING Technology Group 19443100447	125 °C	-40 °C	M32	10B	Hood	2.953 in	93.5 mm	75 mm	3.681 "	1.693 in	43 mm	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom	Stainless Steel	Top Entry
HARTING Technology Group 19443100304
HARTING Technology Group 19443100303	125 °C	-40 °C		10B	Base - Panel Mount	1.157 "	94.2 mm	29.4 mm	3.709 "	1.736 "	44.1 mm	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom	Stainless Steel	Bottom Entry	Cover
HARTING Technology Group 19443100757	125 °C	-40 °C	M32	10B	Hood - Coupling	3.047 "	93.5 mm	77.4 mm	3.681 "	1.693 in	43 mm	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Hood Top	Stainless Steel	Bottom Entry	Cable to Cable
HARTING Technology Group 19443100306	125 °C	-40 °C		10B	Base - Panel Mount							IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom	Stainless Steel	Bottom Entry

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 303.75
Newark	Each	1	$ 309.96

General part information

Hood - Coupling Connector Bottom Entry M32 10B IP65 - Dust Tight, Water Resistant
