19370101270

Active

HARTING Technology Group

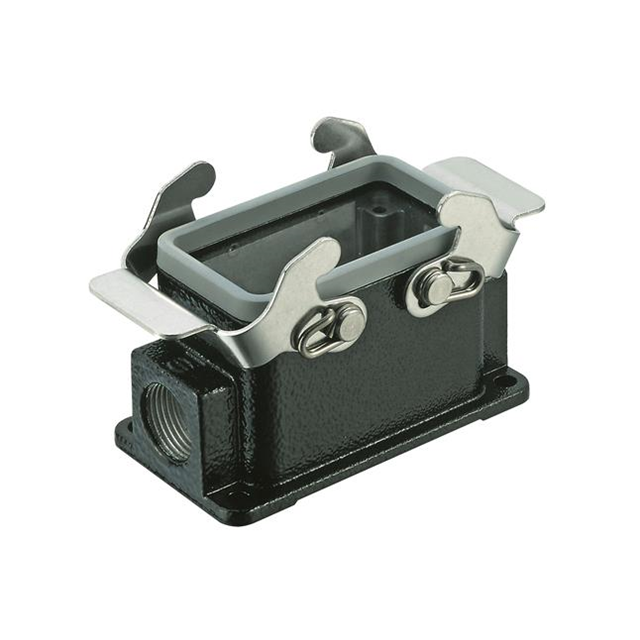

HAN M BASE SURFACE LC 2 LEVERS 1XM20 ROHS COMPLIANT: NA

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN M BASE SURFACE LC 2 LEVERS 1XM20 ROHS COMPLIANT: NA

Technical Specifications

Parameters and characteristics for this part

Specification	19370101270

Connector Type	Base - Box Mount
Features	Feed Through
Housing Color	Black
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	10B
Size / Dimension [x]	3.701 "
Size / Dimension [x]	94 mm
Size / Dimension [y]	52 mm
Size / Dimension [y]	2.047 "
Size / Dimension [z]	53.8 mm
Size / Dimension [z]	2.118 "
Style	Side Entry
Thread Size	M20

Part	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Size	Style	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Connector Type	Housing Material	Housing Color	Thread Size	Housing Finish	Lock Location	Features	Size / Dimension [y]	Size / Dimension [z]
HARTING Technology Group 19370101270	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	10B	Side Entry	3.701 "	53.8 mm	2.118 "	52 mm	94 mm	2.047 "	Base - Box Mount	Aluminum Die Cast	Black	M20	Powder Coated	Locking Clip (2) on Base Bottom	Feed Through
HARTING Technology Group 19370101420	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	10B	Top Entry	2.858 "		1.772 in		72.6 mm	1.693 in	Hood	Aluminum Die Cast	Black	M20	Powder Coated	Locking Clip (2) on Base Bottom		43 mm	45 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Box Mount Connector Side Entry M20 10B IP65 - Dust Tight, Water Resistant
