19370101420

Active

HARTING Technology Group

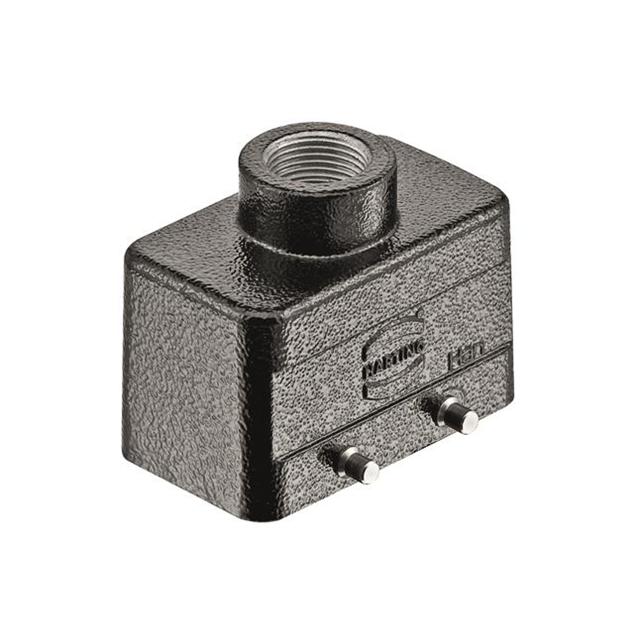

HAN M HOOD TOP ENTRY LC 4 PEGS M20 ROHS COMPLIANT: NA

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN M HOOD TOP ENTRY LC 4 PEGS M20 ROHS COMPLIANT: NA

Technical Specifications

Parameters and characteristics for this part

Specification	19370101420

Connector Type	Hood
Housing Color	Black
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	10B
Size / Dimension [x]	72.6 mm
Size / Dimension [x]	2.858 "
Size / Dimension [y]	43 mm
Size / Dimension [y]	1.693 in
Size / Dimension [z]	1.772 in
Size / Dimension [z]	45 mm
Style	Top Entry
Thread Size	M20

Part	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Size	Style	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Connector Type	Housing Material	Housing Color	Thread Size	Housing Finish	Lock Location	Features	Size / Dimension [y]	Size / Dimension [z]
HARTING Technology Group 19370101270	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	10B	Side Entry	3.701 "	53.8 mm	2.118 "	52 mm	94 mm	2.047 "	Base - Box Mount	Aluminum Die Cast	Black	M20	Powder Coated	Locking Clip (2) on Base Bottom	Feed Through
HARTING Technology Group 19370101420	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	10B	Top Entry	2.858 "		1.772 in		72.6 mm	1.693 in	Hood	Aluminum Die Cast	Black	M20	Powder Coated	Locking Clip (2) on Base Bottom		43 mm	45 mm
