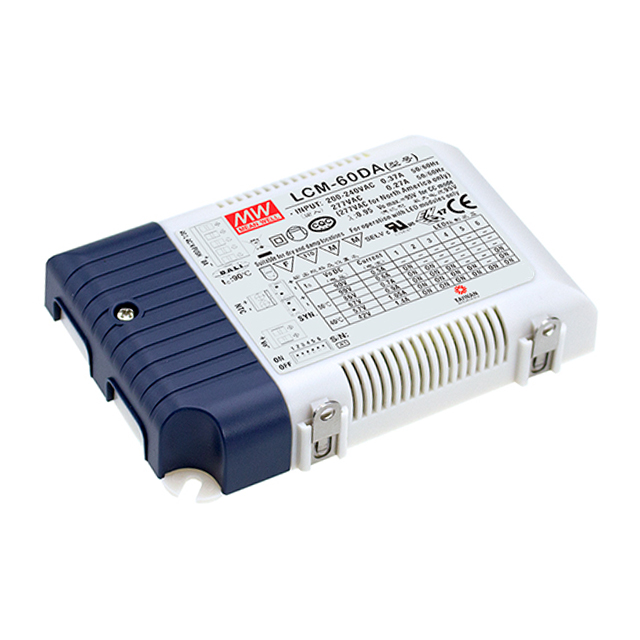

LCM-60DA
ActiveMEAN WELL USA Inc.
LED DRIVER CC AC/DC 2-90V 1.4A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LCM-60DA
ActiveMEAN WELL USA Inc.
LED DRIVER CC AC/DC 2-90V 1.4A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LCM-60DA |
|---|---|
| Approval Agency | cURus, CE, ENEC, CB, CCC |
| Current - Output (Max) [Max] | 1.4 A |
| Dimming | DALI |
| Efficiency | 92 % |
| Features | OTP, OVP, SCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -30 ░C |
| Power (Watts) | 60 W |
| Size / Dimension [x] | 123.5 mm |
| Size / Dimension [x] | 4.86 " |
| Size / Dimension [y] | 3.21 in |
| Size / Dimension [y] | 81.5 mm |
| Size / Dimension [z] | 0.91 in |
| Size / Dimension [z] | 23 mm |
| Termination Style | Terminal Block |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) [Max] | 295 VAC |
| Voltage - Input (Min) [Min] | 180 VAC |
| Voltage - Isolation | 3750 V |
| Voltage - Output [Max] | 90 V |
| Voltage - Output [Min] | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 44.24 | |
| 5 | $ 41.01 | |||
| 10 | $ 39.70 | |||
| 25 | $ 38.03 | |||
Description
General part information
LCM-60 Series
1.4A 2 ~ 90V Constant Current LED Driver AC DC Converter Topology 1 Output
