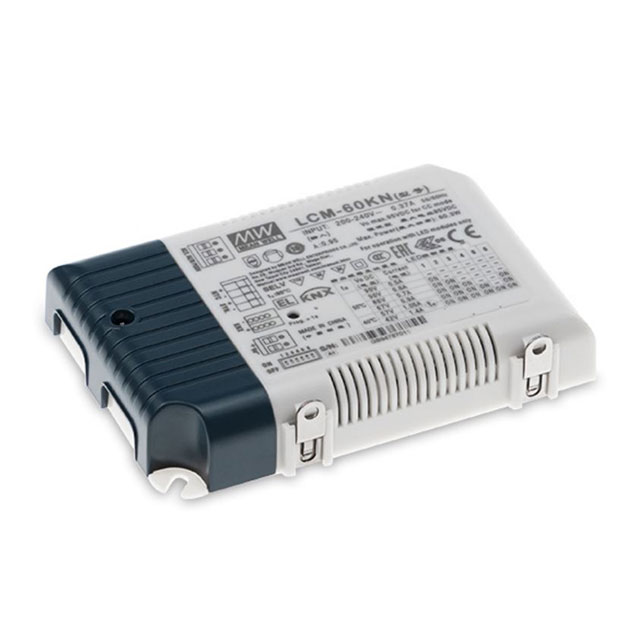

LCM-60KN

Active

MEAN WELL USA Inc.

I/P 180~295VAC O/P 500~1400MA

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

I/P 180~295VAC O/P 500~1400MA

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Input (Max) [Max]	Efficiency	Termination Style	Approval Agency	Voltage - Input (Min) [Min]	Features	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Power (Watts)	Topology	Voltage - Output [Max]	Voltage - Output [Min]	Type	Voltage - Isolation	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Dimming
MEAN WELL USA Inc. LCM-60KN	295 VAC	91 %	Terminal Block	CB CCC CE EAC ENEC	180 VAC	OTP OVP SCP	Chassis Mount	-30 ░C	90 °C	6	60 W	AC DC Converter	90 V	2 V	Constant Current	3750 V	1.4 A	0.91 in	123.5 mm	23 mm	3.21 in	81.5 mm	4.86 "
MEAN WELL USA Inc. LCM-60DA	295 VAC	92 %	Terminal Block	CB CCC CE cURus ENEC	180 VAC	OTP OVP SCP	Chassis Mount	-30 ░C	90 °C	1	60 W	AC DC Converter	90 V	2 V	Constant Current	3750 V	1.4 A	0.91 in	123.5 mm	23 mm	3.21 in	81.5 mm	4.86 "	DALI

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	54	$ 48.70

General part information

1.4A 2 ~ 90V Constant Current LED Driver AC DC Converter Topology 6 Output
