M0420SD-204MDAR1-C

Obsolete

Newhaven Display Intl

MODULE VF CHAR 4X20 4.87MM

Search across all available documentation for this part.

Obsolete

Newhaven Display Intl

MODULE VF CHAR 4X20 4.87MM

Technical Specifications

Parameters and characteristics for this part

Part	Character Size [y]	Character Size [z]	Operating Temperature [Max]	Operating Temperature [Min]	Outline L x W x H [x]	Outline L x W x H [y]	Outline L x W x H [z]	Display Type	Viewing Area [x]	Viewing Area [y]	Format [x]	Format [y]	Controller Type	Interface	Display Format [y]	Display Format [x]	Voltage - Supply [Min]	Voltage - Supply [Max]
Newhaven Display Intl M0420SD-204SDAR1-3	2.35 mm	4.84 mm	85 °C	-40 °C	100 mm	60 mm	20.6 mm	Character	73.6 mm	30.96 mm	5 Dots	8 Dots	PT6314	Parallel/Serial	4	20
Newhaven Display Intl M0240SD-402MDAR1-3	2.1 mm	5.34 mm	70 °C	-20 C	182 mm	33.5 mm	17.6 mm	Character	134.75 mm	11.5 mm	5 Dots	8 Dots		Parallel	2	40	4.5 V	5.5 V
Newhaven Display Intl M0420SD-204MDAR1-C	3.07 mm	4.87 mm	85 °C	-40 °C	150 mm	64 mm	26.5 mm	Character	89.52 mm	33.07 mm	5 Dots	7	PT6314	Parallel/Serial	4	20

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

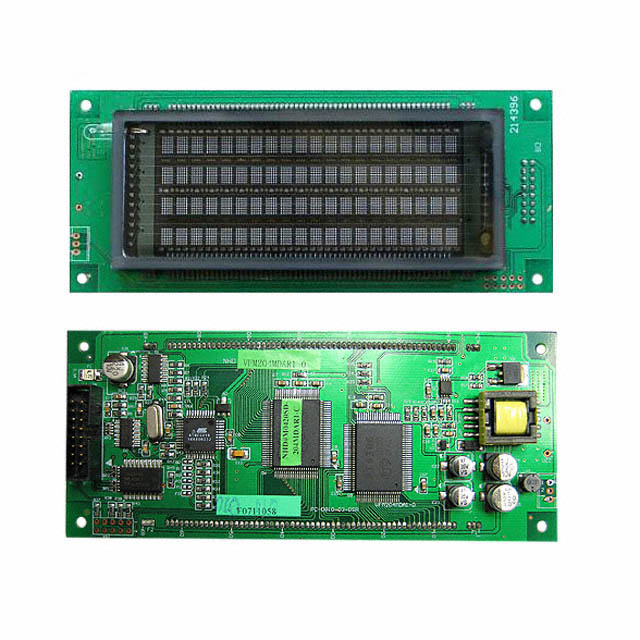

Vacuum Fluorescent Display (VFD) 20 x 4 Character 5V Parallel/Serial 150.00mm x 64.00mm x 26.50mm

Technical documentation and resources

No documents available
