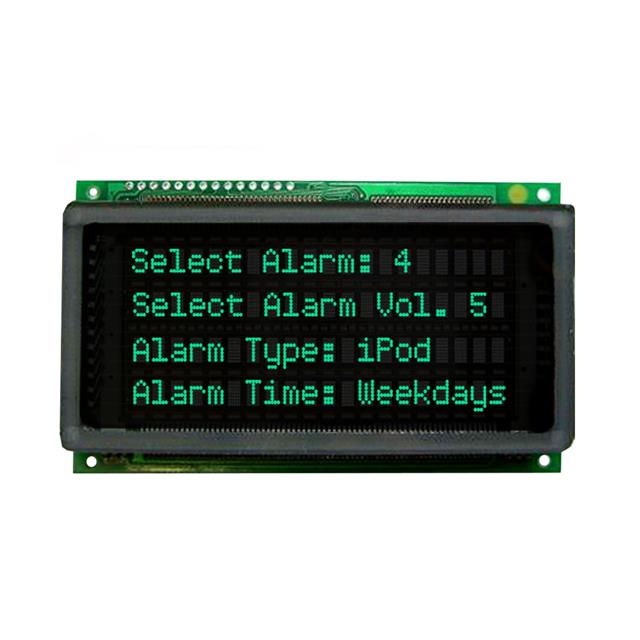

M0420SD-204SDAR1-3
ActiveNewhaven Display Intl
MODULE VF CHAR 4X20 4.84MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M0420SD-204SDAR1-3
ActiveNewhaven Display Intl
MODULE VF CHAR 4X20 4.84MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M0420SD-204SDAR1-3 |
|---|---|
| Character Size [y] | 2.35 mm |
| Character Size [z] | 4.84 mm |
| Controller Type | PT6314 |
| Display Format [x] | 20 |
| Display Format [y] | 4 |
| Display Type | Character |
| Format [x] | 5 Dots |
| Format [y] | 8 Dots |
| Interface | Parallel/Serial |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Outline L x W x H [x] | 100 mm |
| Outline L x W x H [y] | 60 mm |
| Outline L x W x H [z] | 20.6 mm |
| Viewing Area [x] | 73.6 mm |
| Viewing Area [y] | 30.96 mm |
M0420SD Series
| Part | Character Size [y] | Character Size [z] | Operating Temperature [Max] | Operating Temperature [Min] | Outline L x W x H [x] | Outline L x W x H [y] | Outline L x W x H [z] | Display Type | Viewing Area [x] | Viewing Area [y] | Format [x] | Format [y] | Controller Type | Interface | Display Format [y] | Display Format [x] | Voltage - Supply [Min] | Voltage - Supply [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Newhaven Display Intl | 2.35 mm | 4.84 mm | 85 °C | -40 °C | 100 mm | 60 mm | 20.6 mm | Character | 73.6 mm | 30.96 mm | 5 Dots | 8 Dots | PT6314 | Parallel/Serial | 4 | 20 | ||
Newhaven Display Intl | 2.1 mm | 5.34 mm | 70 °C | -20 C | 182 mm | 33.5 mm | 17.6 mm | Character | 134.75 mm | 11.5 mm | 5 Dots | 8 Dots | Parallel | 2 | 40 | 4.5 V | 5.5 V | |
Newhaven Display Intl | 3.07 mm | 4.87 mm | 85 °C | -40 °C | 150 mm | 64 mm | 26.5 mm | Character | 89.52 mm | 33.07 mm | 5 Dots | 7 | PT6314 | Parallel/Serial | 4 | 20 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 500 | $ 68.49 | |
Description
General part information
M0420SD Series
Vacuum Fluorescent Display (VFD) 20 x 4 Character 5V Parallel/Serial 100.00mm x 60.00mm x 20.60mm
