8616-410023

Active

STORM INTERFACE

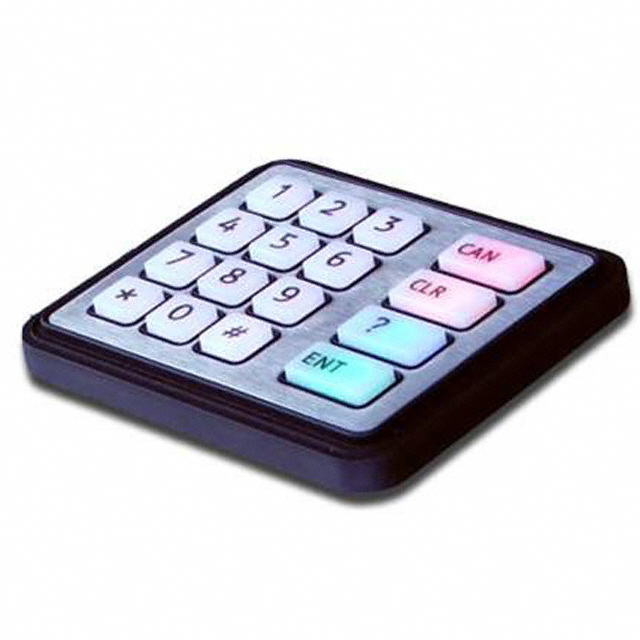

KEYPAD, SF6000 SERIES, 4 X 4, MATRIX, 50 MA, 24 V

Search across all available documentation for this part.

Active

STORM INTERFACE

KEYPAD, SF6000 SERIES, 4 X 4, MATRIX, 50 MA, 24 V

Technical Specifications

Parameters and characteristics for this part

Specification	8616-410023

Approval Agency	CE, cURus
Contact Rating @ Voltage	0.05 A, 24 VDC
Illumination	Illuminated
Illumination Voltage (Nominal)	5 VDC
Ingress Protection	IP65 - Dust Tight, Water Resistant
Key Color	Translucent
Key Type	Transparent Key Cap
Legend	Telephone Format, Function Keys
Legend Color	Black
Legend Type	Fixed
Matrix (Columns x Rows) [custom]	4
Matrix (Columns x Rows) [custom]	4
Mounting Type	Panel Mount, Front or Rear
Number of Keys	16
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Operational Life	4000000 Cycles
Output Type	1.81 mOhm
Panel Cutout Dimensions [x]	97 mm
Panel Cutout Dimensions [y]	79 mm
Switch Type	Conductive Rubber
Termination Style	Pin Header

Part	Legend Type	Matrix (Columns x Rows) [custom]	Matrix (Columns x Rows) [custom]	Operational Life	Illumination	Approval Agency	Key Type	Ingress Protection	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Number of Keys	Switch Type	Contact Rating @ Voltage	Output Type	Termination Style	Mounting Type	Legend Color	Legend	Key Color	Operating Temperature [Min]	Operating Temperature [Max]	Features	Illumination Voltage (Nominal)
STORM INTERFACE 8616-210023	Fixed	4	4	4000000 Cycles	Non-Illuminated	CE cURus	Polymer	IP65 - Dust Tight Water Resistant	79 mm	97 mm	16	Conductive Rubber	0.05 A 24 VDC	1.81 mOhm	Pin Header	Panel Mount Front or Rear	Black White	Function Keys Telephone Format	Multiple	-20 C	60 °C
STORM INTERFACE 8616-310023	Fixed	4	4	4000000 Cycles	Non-Illuminated	CE cURus	Metal	IP65 - Dust Tight Water Resistant	79 mm	97 mm	16	Conductive Rubber	0.05 A 24 VDC	1.81 mOhm	Pin Header	Panel Mount Front or Rear	Black	Function Keys Telephone Format	Multiple	-20 C	60 °C	Anti-Vandal
STORM INTERFACE 8616-410023	Fixed	4	4	4000000 Cycles	Illuminated	CE cURus	Transparent Key Cap	IP65 - Dust Tight Water Resistant	79 mm	97 mm	16	Conductive Rubber	0.05 A 24 VDC	1.81 mOhm	Pin Header	Panel Mount Front or Rear	Black	Function Keys Telephone Format	Translucent	-20 C	60 °C		5 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Keypad Switch 16 Transparent Key Cap Keys Conductive Rubber Contacts Matrix Output Illuminated 0.05A @ 24VDC
