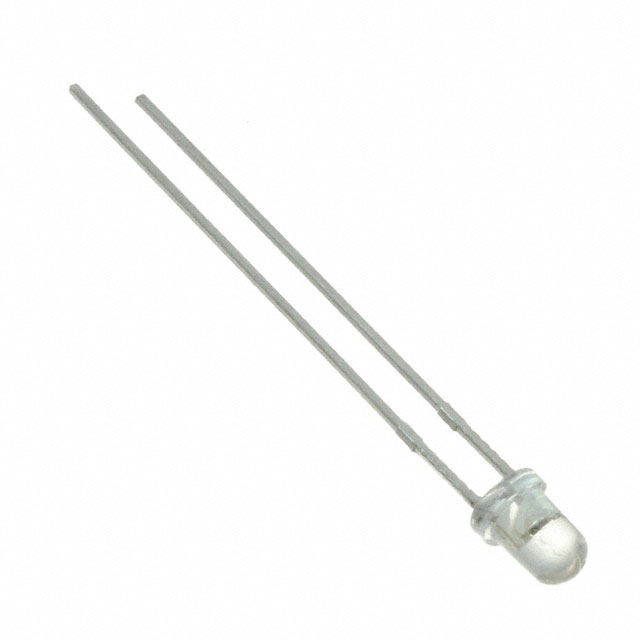

INL-3AA30

Active

Inolux

LED AMBER CLEAR 3MM T/H

Search across all available documentation for this part.

Active

Inolux

LED AMBER CLEAR 3MM T/H

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Forward (Vf) (Typ)	Mounting Type	Package / Case	Orientation	Radiant Intensity (Ie) Min @ If [Min]	Current - DC Forward (If) (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Viewing Angle	Type	Wavelength	Voltage - DC Reverse (Vr) (Max) [Max]	Response Time	Color - Enhanced	Diode Type	Spectral Range [Max] [x]	Spectral Range [Min] [x]	Viewing Angle [custom]	Radiant Intensity (Ie) Min @ If	Lens Style	Lens Transparency	Wavelength - Dominant [custom]	Size / Dimension [diameter]	Supplier Device Package	Configuration	Millicandela Rating	Current - Test	Lens Color	Lens Size	Lens Size	Wavelength - Peak	Height (Max) [Max]	Color
Inolux INL-3AIR30	1.4 V	Through Hole	Radial	Top View	6 mW/sr	100 mA	-40 °C	80 C	30 °	Infrared (IR)	850 nm
Inolux INL-3ANPD80		Through Hole	Radial				-40 °C	80 C	80 °		850 nm	170 V	45 µs	Infrared (NIR) Red	PIN	1100 nm	400 nm
Inolux INL-3ABCMIR40	1.3 V	Through Hole	Radial	Top View	8 mW/sr	100 mA	-40 °C	80 C		Infrared (IR)	880 nm							40 °	20 mA
Inolux INL-3AA30	2 V	Through Hole	Radial						30 °											Round with Domed Top	Clear	610 nm	3.05 mm	3 mm	Standard	460 mcd	20 mA	Colorless	3 mm	T-1	605 nm	0.2 in	Amber
Inolux INL-3AHIR15		Through Hole	Radial	Top View	6 mW/sr	100 mA	-40 °C	80 C	15 °	Infrared (IR)	940 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Amber 610nm LED Indication - Discrete 2V Radial
