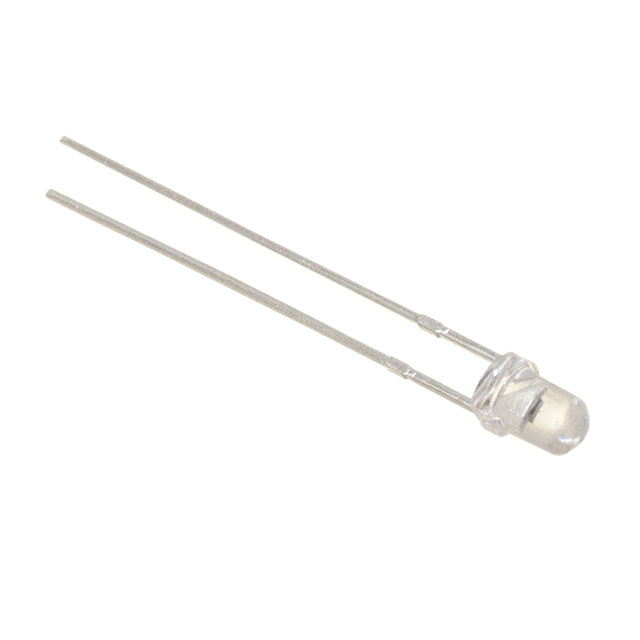

INL-3AHIR15

Active

Inolux

THROUGH HOLE / STANDARD 3MM T1

Search across all available documentation for this part.

Active

Inolux

THROUGH HOLE / STANDARD 3MM T1

Technical Specifications

Parameters and characteristics for this part

Specification	INL-3AHIR15

Current - DC Forward (If) (Max) [Max]	100 mA
Mounting Type	Through Hole
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Orientation	Top View
Package / Case	Radial
Radiant Intensity (Ie) Min @ If [Min]	6 mW/sr
Type	Infrared (IR)
Viewing Angle	15 °
Wavelength	940 nm

Part	Voltage - Forward (Vf) (Typ)	Mounting Type	Package / Case	Orientation	Radiant Intensity (Ie) Min @ If [Min]	Current - DC Forward (If) (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Viewing Angle	Type	Wavelength	Voltage - DC Reverse (Vr) (Max) [Max]	Response Time	Color - Enhanced	Diode Type	Spectral Range [Max] [x]	Spectral Range [Min] [x]	Viewing Angle [custom]	Radiant Intensity (Ie) Min @ If	Lens Style	Lens Transparency	Wavelength - Dominant [custom]	Size / Dimension [diameter]	Supplier Device Package	Configuration	Millicandela Rating	Current - Test	Lens Color	Lens Size	Lens Size	Wavelength - Peak	Height (Max) [Max]	Color
Inolux INL-3AIR30	1.4 V	Through Hole	Radial	Top View	6 mW/sr	100 mA	-40 °C	80 C	30 °	Infrared (IR)	850 nm
Inolux INL-3ANPD80		Through Hole	Radial				-40 °C	80 C	80 °		850 nm	170 V	45 µs	Infrared (NIR) Red	PIN	1100 nm	400 nm
Inolux INL-3ABCMIR40	1.3 V	Through Hole	Radial	Top View	8 mW/sr	100 mA	-40 °C	80 C		Infrared (IR)	880 nm							40 °	20 mA
Inolux INL-3AA30	2 V	Through Hole	Radial						30 °											Round with Domed Top	Clear	610 nm	3.05 mm	3 mm	Standard	460 mcd	20 mA	Colorless	3 mm	T-1	605 nm	0.2 in	Amber
Inolux INL-3AHIR15		Through Hole	Radial	Top View	6 mW/sr	100 mA	-40 °C	80 C	15 °	Infrared (IR)	940 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Infrared (IR) Emitter 940nm 1.2V 100mA 6mW/sr @ 20mA 15° Radial
