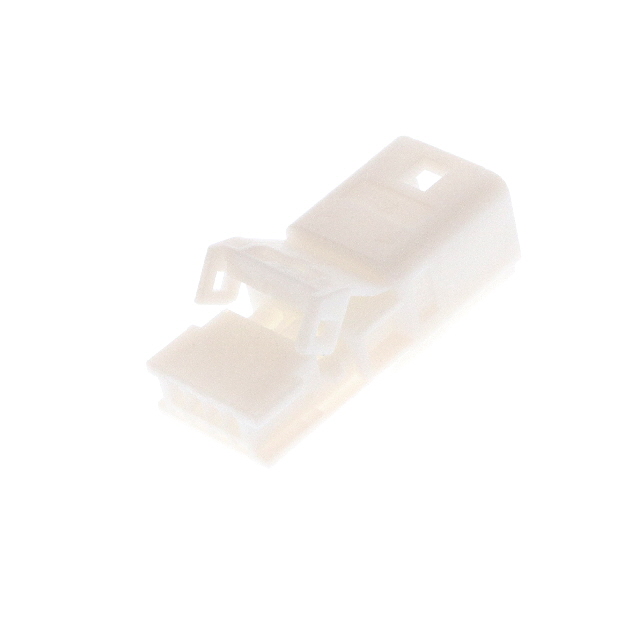

AUTOMOTIVE CONN HOUSING, RCPT, 4POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDrawing EN Datasheet +1

1612035-1

Active

TE Connectivity Raychem Cable Protection

AUTOMOTIVE CONN HOUSING, RCPT, 4POS

Deep-Dive with AI

DocumentsDrawing EN Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1612035-1

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Tab
Insulation Material	Polybutylene Terephthalate (PBT)
Note	Contacts Not Included
Number of Positions	4
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Pitch [x]	0.087 in
Pitch [x]	2.2 mm

0.64/025 Connector System Series

Part	Contact Termination	Wire Gauge [Min]	Wire Gauge [Max]	Pin or Socket	Contact Finish	Contact Type	Contact Shape	Voltage Rating	Contact Material	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Style	Material Flammability Rating	Number of Positions Loaded	Contact Length - Mating	Contact Length - Mating	Fastening Type	Applications	Shrouding	Connector Type	Contact Length - Post	Contact Length - Post	Number of Rows	Row Spacing - Mating	Row Spacing - Mating	Number of Positions	Contact Finish - Post	Termination	Mounting Type	Insulation Height	Insulation Height	Features	Pitch - Mating	Pitch - Mating	Insulation Color	Note	Pitch [x]	Pitch [x]	Row Spacing [x]	Row Spacing [x]	Color	Accessory Type
TE Connectivity Raychem Cable Protection 1674311-1	Crimp	20 AWG	22 AWG	Socket	Tin
TE Connectivity Raychem Cable Protection 1-1376350-4						Male Pin	Square	12 V	Brass	Polybutylene Terephthalate (PBT) Glass Filled	-30 ░C	105 ░C	Board to Cable/Wire	UL94 HB	All	0.217 in	5.5 mm	Latch Holder	Automotive	Shrouded - 4 Wall	Header	0.157 in	4 mm	2	3 mm	0.118 in	8	Tin	Solder	Through Hole Right Angle	0.61 in	15.49 mm	Mounting Flange	0.087 in	2.2 mm	Black
TE Connectivity Raychem Cable Protection 1318757-2	Crimp					Female Socket				Polybutylene Terephthalate (PBT)	-30 ░C	105 ░C						Locking Ramp			Plug			2			26			Free Hanging (In-Line)							Contacts Not Included	0.087 in	2.2 mm	0.118 in	3 mm	Black
TE Connectivity Raychem Cable Protection 1717118-1	Crimp					Female Socket				Polybutylene Terephthalate (PBT)	-30 ░C	105 ░C						Locking Ramp			Plug			2						Free Hanging (In-Line)							Contacts Not Included	0.087 in	2.2 mm	0.118 in	3 mm	Natural
TE Connectivity Raychem Cable Protection 2-1376430-0
TE Connectivity Raychem Cable Protection 1612035-1	Crimp					Tab				Polybutylene Terephthalate (PBT)	-30 ░C	105 ░C									Receptacle			1			4										Contacts Not Included	0.087 in	2.2 mm			Natural
TE Connectivity Raychem Cable Protection 1612108-4																																											Polarizing Device (Key Plug Post)
TE Connectivity Raychem Cable Protection 1674311-2	Crimp	20 AWG	22 AWG	Socket	Gold
TE Connectivity Raychem Cable Protection 1939403-3
TE Connectivity Raychem Cable Protection 1-1318384-9						Male Pin	Square	12 V	Brass	Polybutylene Terephthalate (PBT) Glass Filled	-30 ░C	105 ░C	Board to Cable/Wire	UL94 HB	All	0.217 in	5.5 mm	Latch Holder	Automotive	Shrouded - 4 Wall	Header	0.157 in	4 mm	2	3 mm	0.118 in	40	Tin	Solder	Through Hole Right Angle	0.61 in	15.49 mm	Mounting Flange	0.087 in	2.2 mm	Natural

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.85
		10	$ 0.79
		25	$ 0.76
		50	$ 0.75
		200	$ 0.68
		400	$ 0.66
		600	$ 0.65
Newark	Each	1	$ 1.38
		10	$ 0.98
		25	$ 0.93
		50	$ 0.87
		100	$ 0.81
		500	$ 0.78
		1000	$ 0.75

Description

General part information

0.64/025 Connector System Series

4 Position Housing, Housing for Male Terminals, Wire-to-Wire, 2.2 mm [.087 in] Centerline, Natural, Signal, 0.64/025 Connector System
