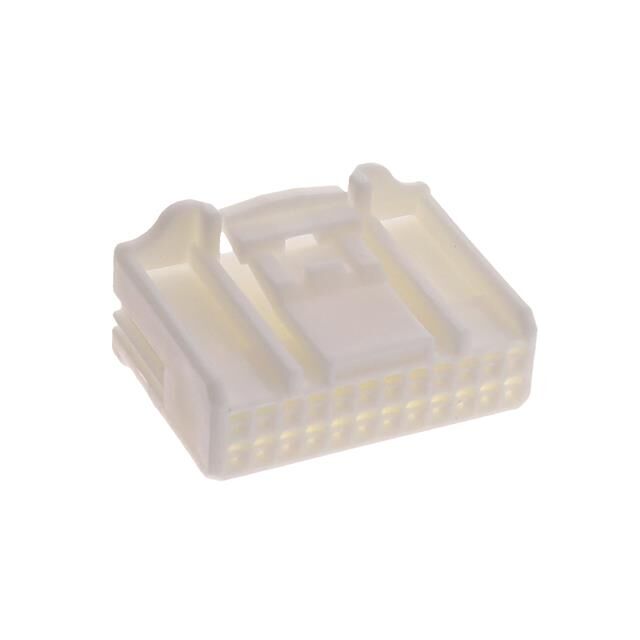

1717118-1
ActiveTE Connectivity Raychem Cable Protection
0.64 III 32POS PLUG ASSY
Deep-Dive with AI
Search across all available documentation for this part.
1717118-1
ActiveTE Connectivity Raychem Cable Protection
0.64 III 32POS PLUG ASSY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1717118-1 |
|---|---|
| Color | Natural |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Locking Ramp |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -30 ░C |
| Pitch [x] | 0.087 in |
| Pitch [x] | 2.2 mm |
| Row Spacing [x] | 0.118 in |
| Row Spacing [x] | 3 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.75 | |
| 10 | $ 1.49 | |||
| 25 | $ 1.39 | |||
| 50 | $ 1.32 | |||
| 100 | $ 1.26 | |||
| 300 | $ 1.17 | |||
| 500 | $ 1.13 | |||
| 1000 | $ 1.07 | |||
| 2500 | $ 1.01 | |||
Description
General part information
0.64/025 Connector System Series
32 Position Housing, Housing for Female Terminals, Wire-to-Board / Wire-to-Device / Wire-to-Wire, 0.64/025 Connector System
