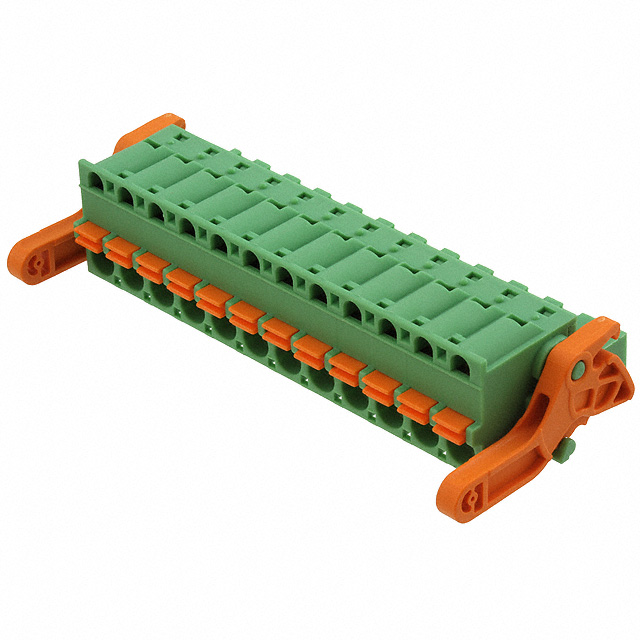

1792614

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 12 POS 5.08MM PITCH PLUG 24-12AWG SPRING

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

1792614

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 12 POS 5.08MM PITCH PLUG 24-12AWG SPRING

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1792614

Color	Green
Contact Mating Finish	Tin
Current - IEC	12 A
Current - UL	10 A
Features	Retention Latches (Non-Wire Side), Ejector Latches
Housing Material	Polyamide (PA), Nylon
Insulation Height	0.591 in
Insulation Height	15 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	12
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Positions Per Level	12
Termination Style	Screwless - Push-In Spring
Type	Plug, Female Sockets
Voltage - IEC	630 V
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	26 AWG
Wire Gauge or Range - AWG [Min]	12 AWG
Wire Gauge or Range - mm² [Max]	2.5 mm²
Wire Gauge or Range - mm² [Min]	0.2 mm²
Wire Strip Length	10 mm

FKC Series

Pluggable Terminal Blocks 12 Pos 5.08mm pitch Plug 24-12AWG Spring

Part	Number of Positions	Current - IEC	Type	Contact Mating Finish	Insulation Height	Insulation Height	Voltage - UL	Housing Material	Number of Levels	Positions Per Level	Mounting Type	Termination Style	Voltage - IEC	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Current - UL	Wire Strip Length	Pitch [x]	Pitch [x]	Color	Material Flammability Rating	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Features	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]
Phoenix Contact 1910393	6	12 A	Plug Female Sockets	Tin	0.591 in	15 mm	300 V	Polyamide (PA) Nylon	1	6	Free Hanging (In-Line)	Push-In Spring Screwless - Leg Spring	630 V	12 AWG	26 AWG	10 A	10 mm	5 mm	0.197 in	Green	UL94 V-0	0.2 mm˛	2.5 mm˛
Phoenix Contact 1925825	15	12 A	Plug Female Sockets	Tin	0.591 in	15 mm	300 V	Polyamide (PA) Nylon	1	15	Free Hanging (In-Line)	Screwless - Push-In Spring	630 V	12 AWG	26 AWG	10 A	10 mm	5.08 mm	0.2 in	Green	UL94 V-0			Latch Lock Retention Latches (Non-Wire Side)	0.2 mm²	2.5 mm²
Phoenix Contact 1925812	14	12 A	Plug Female Sockets	Tin	0.591 in	15 mm	300 V	Polyamide (PA) Nylon	1	14	Free Hanging (In-Line)	Screwless - Push-In Spring	630 V	12 AWG	26 AWG	10 A	10 mm	5.08 mm	0.2 in	Green	UL94 V-0			Latch Lock Retention Latches (Non-Wire Side)	0.2 mm²	2.5 mm²
Phoenix Contact 1792614	12	12 A	Plug Female Sockets	Tin	0.591 in	15 mm	300 V	Polyamide (PA) Nylon	1	12	Free Hanging (In-Line)	Screwless - Push-In Spring	630 V	12 AWG	26 AWG	10 A	10 mm	5.08 mm	0.2 in	Green	UL94 V-0			Ejector Latches Retention Latches (Non-Wire Side)	0.2 mm²	2.5 mm²
Phoenix Contact 1942400		16 A	Plug Female Sockets	Tin	0.591 in	15 mm	300 V	Polyamide (PA) Nylon	1	5	Free Hanging (In-Line)	Screwless - Push-In Spring	630 V	12 AWG	26 AWG	16 A	10 mm	5.08 mm	0.2 in	Green	UL94 V-0				0.2 mm²	2.5 mm²

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 12.42
Sager	N/A	50	$ 14.62
		100	$ 14.09

Description

General part information

FKC Series

Pluggable Terminal Blocks 12 Pos 5.08mm pitch Plug 24-12AWG Spring

Documents

Technical documentation and resources

Datasheet

Document
