G125-FC11205F0-0150L

Active

Harwin Inc.

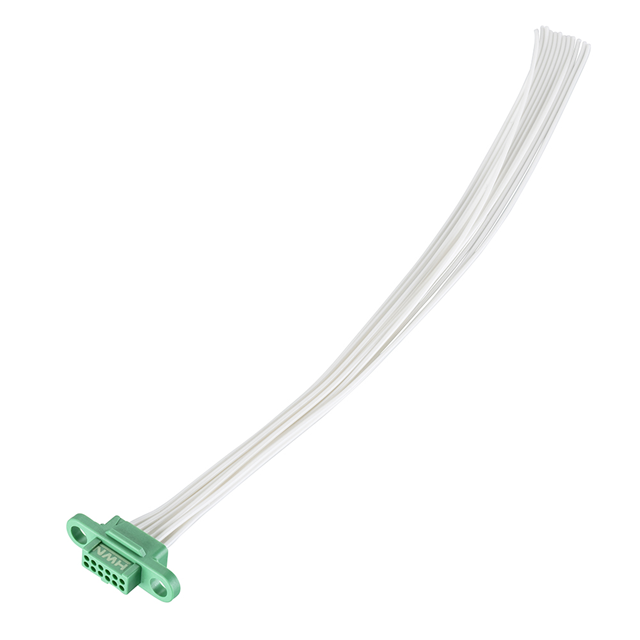

6+6 POS. FEMALE DIL 26AWG CABLE ASSEMBLY, 150MM, SINGLE-END, NO SCREW-LOK ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsG125-2040696L0 Datasheet +2

G125-FC11205F0-0150L

Active

Harwin Inc.

6+6 POS. FEMALE DIL 26AWG CABLE ASSEMBLY, 150MM, SINGLE-END, NO SCREW-LOK ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsG125-2040696L0 Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	G125-FC11205F0-0150L

Cable Termination	Crimp
Connector Type	Socket to Individual Wire Leads
Contact Finish	Gold
Features	Screw Lock, Polarizing Key
Length	150 mm
Length	5.91 "
Length	0.492 ft
Number of Positions	12
Number of Rows	2
Pitch - Connector	0.049 in
Pitch - Connector	1.25 mm
Shielding	Unshielded

G125-FC1 Series

Part	Shielding	Number of Positions	Number of Rows	Pitch - Connector	Pitch - Connector	Length [x]	Length [x]	Length [x]	Connector Type	Cable Termination	Features	Contact Finish	Length	Length	Length	Number of Positions
Harwin Inc. G125-FC12005L0-0300F	Unshielded	20	2	0.049 in	1.25 mm	0.984 '	11.81 "	300 mm	Socket to Socket	Crimp	Latch Holder Polarizing Key	Gold
Harwin Inc. G125-FC11205F0-0150L	Unshielded	12	2	0.049 in	1.25 mm				Socket to Individual Wire Leads	Crimp	Polarizing Key Screw Lock	Gold	150 mm	5.91 "	0.492 ft
Harwin Inc. G125-FC13405F0-0450L	Unshielded	34	2	0.049 in	1.25 mm	17.76 in		450 mm	Socket to Individual Wire Leads	Crimp	Polarizing Key Screw Lock	Gold
Harwin Inc. G125-FC12605F1-0300F1	Unshielded	26	2	0.049 in	1.25 mm	0.984 '	11.81 "	300 mm	Socket to Socket	Crimp	Polarizing Key Screw Lock	Gold
Harwin Inc. G125-FC12605F0-0450L	Unshielded	26	2	0.049 in	1.25 mm	17.76 in		450 mm	Socket to Individual Wire Leads	Crimp	Polarizing Key Screw Lock	Gold
Harwin Inc. G125-FC11205L0-0450L	Unshielded	12	2	0.049 in	1.25 mm	17.76 in		450 mm	Socket to Individual Wire Leads	Crimp	Latch Holder Polarizing Key	Gold
Harwin Inc. G125-FC12605L0-0150F	Unshielded	26	2	0.049 in	1.25 mm				Socket to Socket	Crimp	Latch Holder Polarizing Key	Gold	150 mm	5.91 "	0.492 ft
Harwin Inc. G125-FC12605F0-0300F0	Unshielded	26	2	0.049 in	1.25 mm	0.984 '	11.81 "	300 mm	Socket to Socket	Crimp	Polarizing Key Screw Lock	Gold
Harwin Inc. G125-FC11605L0-0300F	Unshielded		2	0.049 in	1.25 mm	0.984 '	11.81 "	300 mm	Socket to Socket	Crimp	Latch Holder Polarizing Key	Gold				16
Harwin Inc. G125-FC12605F0-0150L	Unshielded	26	2	0.049 in	1.25 mm				Socket to Individual Wire Leads	Crimp	Polarizing Key Screw Lock	Gold	150 mm	5.91 "	0.492 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 32.82
Newark	Each	1	$ 53.65
		100	$ 42.13

Description

General part information

G125-FC1 Series

12 Position Cable Assembly Rectangular Socket to Individual Wire Leads 0.492' (150.00mm, 5.91")

Documents

Technical documentation and resources

G125-2040696L0

Datasheet

G125 Spec Sheet

Datasheet
