G125-FC11605L0-0300F

Active

Harwin Inc.

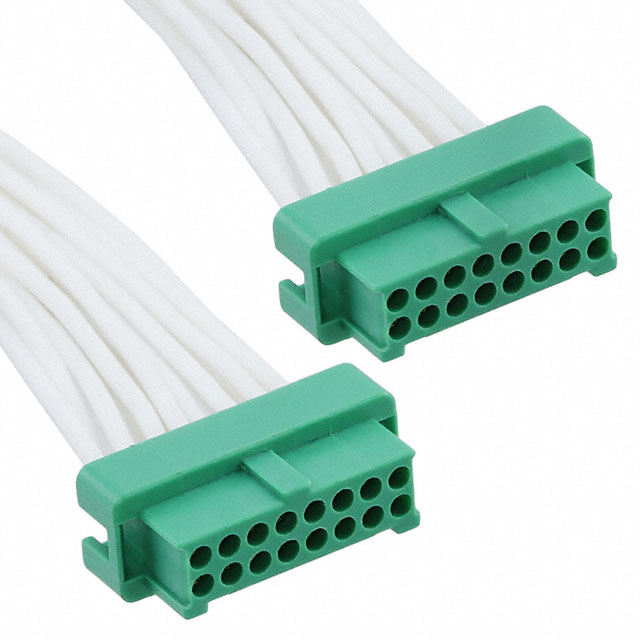

8+8 POS. FEMALE DIL 26AWG CABLE ASSEMBLY, 300MM, DOUBLE-END, FOR LATCHES ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet G125-2040696L0 +3

G125-FC11605L0-0300F

Active

Harwin Inc.

8+8 POS. FEMALE DIL 26AWG CABLE ASSEMBLY, 300MM, DOUBLE-END, FOR LATCHES ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet G125-2040696L0 +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	G125-FC11605L0-0300F

Cable Termination	Crimp
Connector Type	Socket to Socket
Contact Finish	Gold
Features	Latch Holder, Polarizing Key
Length [x]	0.984 '
Length [x]	11.81 "
Length [x]	300 mm
Number of Positions	16
Number of Rows	2
Pitch - Connector	0.049 in
Pitch - Connector	1.25 mm
Shielding	Unshielded

G125-FC1 Series

Part	Shielding	Number of Positions	Number of Rows	Pitch - Connector	Pitch - Connector	Length [x]	Length [x]	Length [x]	Connector Type	Cable Termination	Features	Contact Finish	Length	Length	Length	Number of Positions
Harwin Inc. G125-FC12005L0-0300F	Unshielded	20	2	0.049 in	1.25 mm	0.984 '	11.81 "	300 mm	Socket to Socket	Crimp	Latch Holder Polarizing Key	Gold
Harwin Inc. G125-FC11205F0-0150L	Unshielded	12	2	0.049 in	1.25 mm				Socket to Individual Wire Leads	Crimp	Polarizing Key Screw Lock	Gold	150 mm	5.91 "	0.492 ft
Harwin Inc. G125-FC13405F0-0450L	Unshielded	34	2	0.049 in	1.25 mm	17.76 in		450 mm	Socket to Individual Wire Leads	Crimp	Polarizing Key Screw Lock	Gold
Harwin Inc. G125-FC12605F1-0300F1	Unshielded	26	2	0.049 in	1.25 mm	0.984 '	11.81 "	300 mm	Socket to Socket	Crimp	Polarizing Key Screw Lock	Gold
Harwin Inc. G125-FC12605F0-0450L	Unshielded	26	2	0.049 in	1.25 mm	17.76 in		450 mm	Socket to Individual Wire Leads	Crimp	Polarizing Key Screw Lock	Gold
Harwin Inc. G125-FC11205L0-0450L	Unshielded	12	2	0.049 in	1.25 mm	17.76 in		450 mm	Socket to Individual Wire Leads	Crimp	Latch Holder Polarizing Key	Gold
Harwin Inc. G125-FC12605L0-0150F	Unshielded	26	2	0.049 in	1.25 mm				Socket to Socket	Crimp	Latch Holder Polarizing Key	Gold	150 mm	5.91 "	0.492 ft
Harwin Inc. G125-FC12605F0-0300F0	Unshielded	26	2	0.049 in	1.25 mm	0.984 '	11.81 "	300 mm	Socket to Socket	Crimp	Polarizing Key Screw Lock	Gold
Harwin Inc. G125-FC11605L0-0300F	Unshielded		2	0.049 in	1.25 mm	0.984 '	11.81 "	300 mm	Socket to Socket	Crimp	Latch Holder Polarizing Key	Gold				16
Harwin Inc. G125-FC12605F0-0150L	Unshielded	26	2	0.049 in	1.25 mm				Socket to Individual Wire Leads	Crimp	Polarizing Key Screw Lock	Gold	150 mm	5.91 "	0.492 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 98.39
		10	$ 90.29
		30	$ 86.82
		50	$ 83.92
		100	$ 79.29
Newark	Each	10	$ 93.98
		50	$ 84.81
		100	$ 80.23
		250	$ 77.94
		500	$ 76.22

Description

General part information

G125-FC1 Series

16 Position Cable Assembly Rectangular Socket to Socket 0.984' (300.00mm, 11.81")

Documents

Technical documentation and resources

Datasheet

G125-2040696L0

G125-0010005

G125 Spec Sheet

Datasheet

Manufacturer Catalogue EN

Datasheet
