892-112-500-212

Active

EDAC Inc.

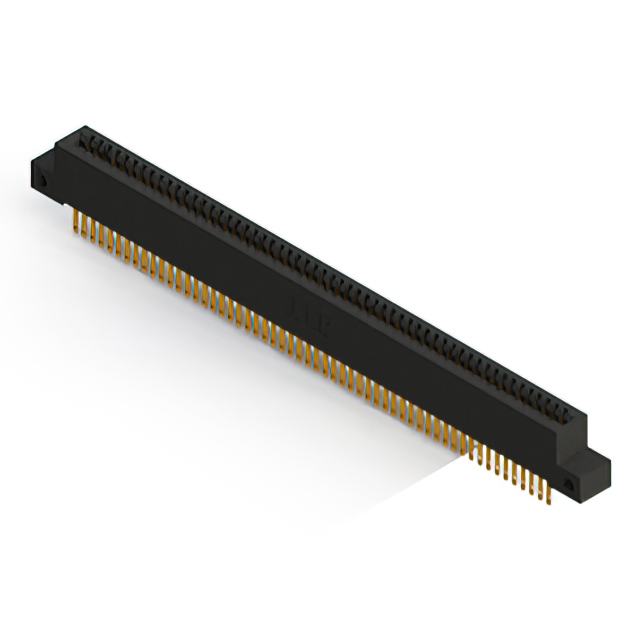

2.54MM STRAIGHT 112P -40℃~+125℃ PLUGIN,P=2.54MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

892-112-500-212

Active

EDAC Inc.

2.54MM STRAIGHT 112P -40℃~+125℃ PLUGIN,P=2.54MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	892-112-500-212

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Unthreaded, Flush Mount, Side Opening
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole
Number of Positions	112
Number of Positions/Bay/Row [custom]	56
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	2

892-112 Series

...

Part	Operating Temperature [Max]	Operating Temperature [Min]	Read Out	Number of Positions	Contact Type	Card Type	Number of Rows	Gender	Color	Material - Insulation	Termination	Number of Positions/Bay/Row [custom]	Mounting Type	Termination Rows	Contact Material	Pitch [x]	Pitch [x]	Contact Finish	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Finish Thickness	Contact Finish Thickness	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Features
EDAC Inc. 892-112-559-201	125 °C	-40 °C	Dual	112	Cantilever	Non Specified - Dual Edge	2	Female	Black	Polyphenylene Sulfide (PPS)	Solder	56	Through Hole Right Angle	2	Copper Alloy	2.54 mm	0.1 in	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám
EDAC Inc. 892-112-540-202	125 °C	-40 °C	Dual	112	Cantilever	Non Specified - Dual Edge	2	Female	Black	Polyphenylene Sulfide (PPS)	Wire Wrap	56	Through Hole	2	Copper Alloy	2.54 mm	0.1 in	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded
EDAC Inc. 892-112-524-202	125 °C	-40 °C	Dual	112	Cantilever	Non Specified - Dual Edge	2	Female	Black	Polyphenylene Sulfide (PPS)	Solder	56	Through Hole	2	Copper Alloy	2.54 mm	0.1 in	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded
EDAC Inc. 892-112-520-212	125 °C	-40 °C	Dual	112	Cantilever	Non Specified - Dual Edge	2	Female	Black	Polyphenylene Sulfide (PPS)	Solder	56	Through Hole	2	Copper Alloy	2.54 mm	0.1 in	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	3.25 mm	0.128 "	Flush Mount Side Opening Unthreaded
EDAC Inc. 892-112-500-212	125 °C	-40 °C	Dual	112	Cantilever	Non Specified - Dual Edge	2	Female	Black	Polyphenylene Sulfide (PPS)	Solder Eyelet(s)	56	Through Hole	2	Copper Alloy	2.54 mm	0.1 in	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	3.25 mm	0.128 "	Flush Mount Side Opening Unthreaded
EDAC Inc. 892-112-555-201	125 °C	-40 °C	Dual	112	Cantilever	Non Specified - Dual Edge	2	Female	Black	Polyphenylene Sulfide (PPS)	Solder	56	Board Edge Straddle Mount	2	Copper Alloy	2.54 mm	0.1 in	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám				Card Extender
EDAC Inc. 892-112-555-202	125 °C	-40 °C	Dual	112	Cantilever	Non Specified - Dual Edge	2	Female	Black	Polyphenylene Sulfide (PPS)	Solder	56	Board Edge Straddle Mount	2	Copper Alloy	2.54 mm	0.1 in	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Card Extender
EDAC Inc. 892-112-555-207	125 °C	-40 °C	Dual	112	Cantilever	Non Specified - Dual Edge	2	Female	Black	Polyphenylene Sulfide (PPS)	Solder	56	Board Edge Straddle Mount	2	Copper Alloy	2.54 mm	0.1 in	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám			Flush Mount M3 Threaded Insert Top Opening	Card Extender
EDAC Inc. 892-112-542-207	125 °C	-40 °C	Dual	112	Cantilever	Non Specified - Dual Edge	2	Female	Black	Polyphenylene Sulfide (PPS)	Wire Wrap	56	Through Hole	2	Copper Alloy	2.54 mm	0.1 in	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám			Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 892-112-541-212	125 °C	-40 °C	Dual	112	Cantilever	Non Specified - Dual Edge	2	Female	Black	Polyphenylene Sulfide (PPS)	Wire Wrap	56	Through Hole	2	Copper Alloy	2.54 mm	0.1 in	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	3.25 mm	0.128 "	Flush Mount Side Opening Unthreaded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 168.30
LCSC	Piece	1	$ 90.67
		200	$ 35.09
		500	$ 33.85
		1000	$ 33.25
Newark	Each	1	$ 226.09
		100	$ 187.77
		250	$ 166.77
		500	$ 116.45
		1000	$ 88.50

Description

General part information

892-112 Series

112 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
