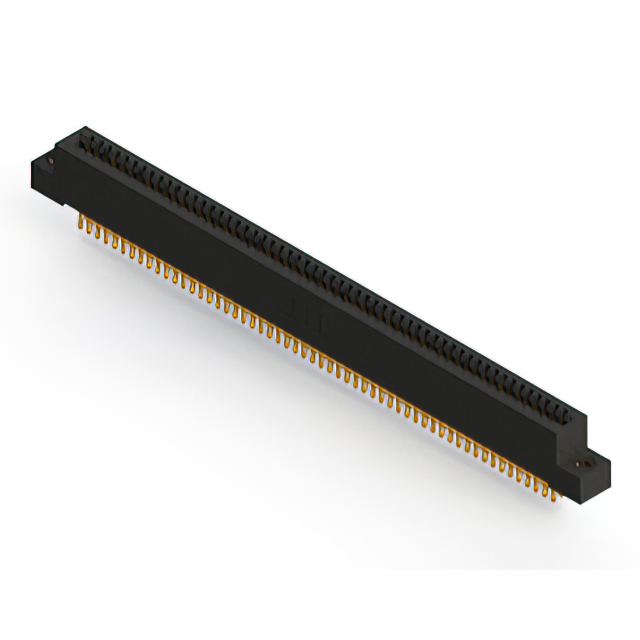

892-112-555-207
ActiveEDAC Inc.
CONN EDGE DUAL FML 112POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
892-112-555-207
ActiveEDAC Inc.
CONN EDGE DUAL FML 112POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 892-112-555-207 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Extender |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 112 |
| Number of Positions/Bay/Row [custom] | 56 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
892-112 Series
...
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Read Out | Number of Positions | Contact Type | Card Type | Number of Rows | Gender | Color | Material - Insulation | Termination | Number of Positions/Bay/Row [custom] | Mounting Type | Termination Rows | Contact Material | Pitch [x] | Pitch [x] | Contact Finish | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish Thickness | Contact Finish Thickness | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 125 °C | -40 °C | Dual | 112 | Cantilever | Non Specified - Dual Edge | 2 | Female | Black | Polyphenylene Sulfide (PPS) | Solder | 56 | Through Hole Right Angle | 2 | Copper Alloy | 2.54 mm | 0.1 in | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | ||||
EDAC Inc. | 125 °C | -40 °C | Dual | 112 | Cantilever | Non Specified - Dual Edge | 2 | Female | Black | Polyphenylene Sulfide (PPS) | Wire Wrap | 56 | Through Hole | 2 | Copper Alloy | 2.54 mm | 0.1 in | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | |
EDAC Inc. | 125 °C | -40 °C | Dual | 112 | Cantilever | Non Specified - Dual Edge | 2 | Female | Black | Polyphenylene Sulfide (PPS) | Solder | 56 | Through Hole | 2 | Copper Alloy | 2.54 mm | 0.1 in | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | |
EDAC Inc. | 125 °C | -40 °C | Dual | 112 | Cantilever | Non Specified - Dual Edge | 2 | Female | Black | Polyphenylene Sulfide (PPS) | Solder | 56 | Through Hole | 2 | Copper Alloy | 2.54 mm | 0.1 in | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 " | Flush Mount Side Opening Unthreaded | |
EDAC Inc. | 125 °C | -40 °C | Dual | 112 | Cantilever | Non Specified - Dual Edge | 2 | Female | Black | Polyphenylene Sulfide (PPS) | Solder Eyelet(s) | 56 | Through Hole | 2 | Copper Alloy | 2.54 mm | 0.1 in | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 " | Flush Mount Side Opening Unthreaded | |
EDAC Inc. | 125 °C | -40 °C | Dual | 112 | Cantilever | Non Specified - Dual Edge | 2 | Female | Black | Polyphenylene Sulfide (PPS) | Solder | 56 | Board Edge Straddle Mount | 2 | Copper Alloy | 2.54 mm | 0.1 in | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Card Extender | |||
EDAC Inc. | 125 °C | -40 °C | Dual | 112 | Cantilever | Non Specified - Dual Edge | 2 | Female | Black | Polyphenylene Sulfide (PPS) | Solder | 56 | Board Edge Straddle Mount | 2 | Copper Alloy | 2.54 mm | 0.1 in | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Card Extender |
EDAC Inc. | 125 °C | -40 °C | Dual | 112 | Cantilever | Non Specified - Dual Edge | 2 | Female | Black | Polyphenylene Sulfide (PPS) | Solder | 56 | Board Edge Straddle Mount | 2 | Copper Alloy | 2.54 mm | 0.1 in | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Flush Mount M3 Threaded Insert Top Opening | Card Extender | ||
EDAC Inc. | 125 °C | -40 °C | Dual | 112 | Cantilever | Non Specified - Dual Edge | 2 | Female | Black | Polyphenylene Sulfide (PPS) | Wire Wrap | 56 | Through Hole | 2 | Copper Alloy | 2.54 mm | 0.1 in | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Flush Mount M3 Threaded Insert Top Opening | |||
EDAC Inc. | 125 °C | -40 °C | Dual | 112 | Cantilever | Non Specified - Dual Edge | 2 | Female | Black | Polyphenylene Sulfide (PPS) | Wire Wrap | 56 | Through Hole | 2 | Copper Alloy | 2.54 mm | 0.1 in | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 " | Flush Mount Side Opening Unthreaded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
892-112 Series
112 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
