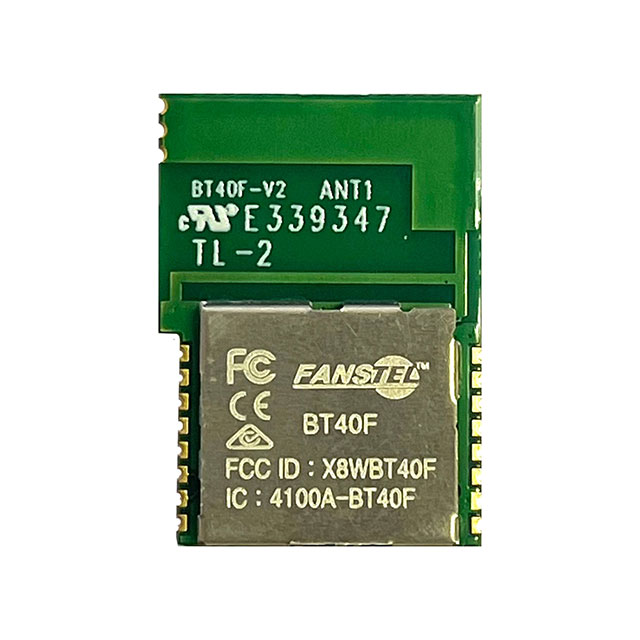

BT40F
ActiveFanstel Corp.
RF TXRX MOD 802.15.4 BT TH SMD
Deep-Dive with AI
Search across all available documentation for this part.
BT40F
ActiveFanstel Corp.
RF TXRX MOD 802.15.4 BT TH SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BT40F |
|---|---|
| Antenna Type | PCB Trace |
| Current - Receiving | 2.6 mA |
| Current - Transmitting | 3.2 mA |
| Data Rate | 2 Mbps |
| Frequency | 2.4 GHz |
| Memory Size [custom] | 512 kB |
| Memory Size [custom] | 1 MB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Power - Output | 3 dBm |
| Protocol | Bluetooth v5.1, Zigbee® |
| RF Family/Standard | Bluetooth, 802.15.4 |
| Sensitivity | -97.5 dBm |
| Serial Interfaces | SPI, GPIO, PWM, UART, I2C, USB, I2S, ADC |
| Utilized IC / Part | nRF5340 |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 1.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 19.52 | |
| 10 | $ 15.26 | |||
| 25 | $ 14.02 | |||
| 100 | $ 12.51 | |||
| 250 | $ 11.71 | |||
| 500 | $ 11.20 | |||
| Digi-Reel® | 1 | $ 19.52 | ||
| 10 | $ 15.26 | |||
| 25 | $ 14.02 | |||
| 100 | $ 12.51 | |||
| 250 | $ 11.71 | |||
| 500 | $ 11.20 | |||
| Tape & Reel (TR) | 1000 | $ 10.76 | ||
Description
General part information
BT40 Series
802.15.4, Bluetooth Bluetooth v5.1, Zigbee® Transceiver Module 2.4GHz PCB Trace Surface Mount
