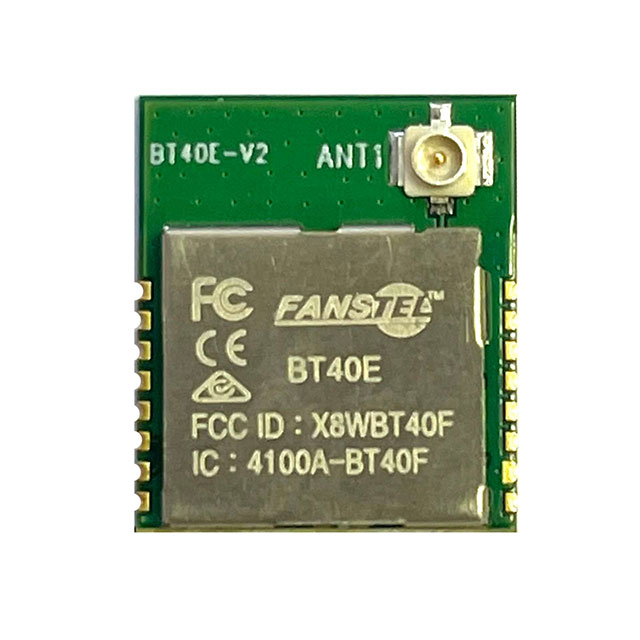

BT40E
ActiveFanstel Corp.
RF TXRX MOD 802.15.4 BTU.FL SMD
Deep-Dive with AI
Search across all available documentation for this part.
BT40E
ActiveFanstel Corp.
RF TXRX MOD 802.15.4 BTU.FL SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BT40E |
|---|---|
| Antenna Type | Antenna Not Included, U.FL |
| Current - Receiving | 2.6 mA |
| Current - Transmitting | 3.2 mA |
| Data Rate | 2 Mbps |
| Frequency | 2.4 GHz |
| Memory Size [custom] | 512 kB |
| Memory Size [custom] | 1 MB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Power - Output | 3 dBm |
| Protocol | Bluetooth v5.1, Zigbee® |
| RF Family/Standard | Bluetooth, 802.15.4 |
| Sensitivity | -97.5 dBm |
| Serial Interfaces | SPI, GPIO, PWM, UART, I2C, USB, I2S, ADC |
| Utilized IC / Part | nRF5340 |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 1.7 V |
BT40 Series
| Part | Sensitivity | Operating Temperature [Min] | Operating Temperature [Max] | Utilized IC / Part | Antenna Type | Mounting Type | Voltage - Supply [Max] | Voltage - Supply [Min] | Frequency | RF Family/Standard | Data Rate | Current - Receiving | Memory Size [custom] | Memory Size [custom] | Power - Output | Current - Transmitting | Serial Interfaces | Protocol | Type | For Use With/Related Products | Supplied Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Fanstel Corp. | -97.5 dBm | -40 °C | 105 ░C | nRF5340 | Antenna Not Included U.FL | Surface Mount | 5.5 V | 1.7 V | 2.4 GHz | 802.15.4 Bluetooth | 2 Mbps | 2.6 mA | 512 kB | 1 MB | 3 dBm | 3.2 mA | ADC GPIO I2C I2S PWM SPI UART USB | Bluetooth v5.1 Zigbee® | |||
Fanstel Corp. | 2.4 GHz | 802.15.4 (Thread Zigbee®) Bluetooth® 5.x (BLE) Transceiver | BT40 nRF5340 | Board(s) | |||||||||||||||||
Fanstel Corp. | -97.5 dBm | -40 °C | 105 ░C | nRF5340 | PCB Trace | Surface Mount | 5.5 V | 1.7 V | 2.4 GHz | 802.15.4 Bluetooth | 2 Mbps | 2.6 mA | 512 kB | 1 MB | 3 dBm | 3.2 mA | ADC GPIO I2C I2S PWM SPI UART USB | Bluetooth v5.1 Zigbee® |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 18.84 | |
| 10 | $ 14.72 | |||
| 25 | $ 13.51 | |||
| 100 | $ 12.05 | |||
| 250 | $ 11.28 | |||
| 500 | $ 10.79 | |||
| Digi-Reel® | 1 | $ 18.84 | ||
| 10 | $ 14.72 | |||
| 25 | $ 13.51 | |||
| 100 | $ 12.05 | |||
| 250 | $ 11.28 | |||
| 500 | $ 10.79 | |||
| Tape & Reel (TR) | 1000 | $ 9.87 | ||
Description
General part information
BT40 Series
802.15.4, Bluetooth Bluetooth v5.1, Zigbee® Transceiver Module 2.4GHz Antenna Not Included, U.FL Surface Mount
Documents
Technical documentation and resources
No documents available
