RE48AML12MW

Active

SQUARE D BY SCHNEIDER ELECTRIC

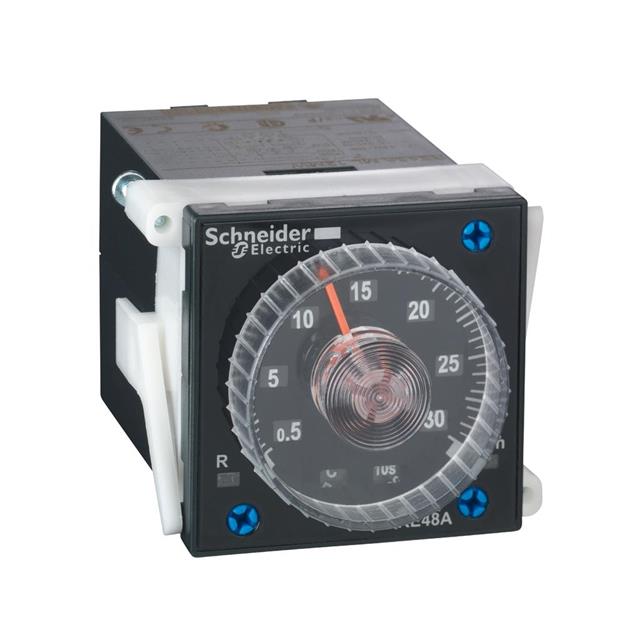

TIME DELAY RELAY, DPDT, 300HOUR, 240V

Search across all available documentation for this part.

Active

SQUARE D BY SCHNEIDER ELECTRIC

TIME DELAY RELAY, DPDT, 300HOUR, 240V

Technical Specifications

Parameters and characteristics for this part

Specification	RE48AML12MW

Circuit	DPDT (2 Form C)
Contact Rating @ Voltage	250 VAC, 5 A
Delay Time [Max]	300 Hrs
Delay Time [Min]	0.02 Sec
Function	Programmable (Multi-Function)
Relay Type	Mechanical Relay
Termination Style	Plug In
Timing Adjustment Method	Hand Dial
Timing Initiate Method	Input Voltage
Voltage - Supply [Max]	240 VAC
Voltage - Supply [Min]	24 VAC

Part	Delay Time [Min]	Delay Time [Max]	Termination Style	Relay Type	Timing Initiate Method	Contact Rating @ Voltage	Function	Voltage - Supply [Min]	Voltage - Supply [Max]	Timing Adjustment Method	Circuit
SQUARE D BY SCHNEIDER ELECTRIC RE48AML12MW	0.02 Sec	300 Hrs	Plug In	Mechanical Relay	Input Voltage	5 A 250 VAC	Programmable (Multi-Function)	24 VAC	240 VAC	Hand Dial	DPDT (2 Form C)
SQUARE D BY SCHNEIDER ELECTRIC RE48ACV12MW	0.02 Sec	300 Hrs	Plug In	Mechanical Relay	Input Voltage	5 A 250 VAC	Repeat Cycle Twin Timer	24 VAC	240 VAC	Hand Dial	DPDT (2 Form C)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 86.00
Newark	Each	1	$ 121.57

General part information

Programmable (Multi-Function) Time Delay Relay DPDT (2 Form C) 0.02 Sec ~ 300 Hrs Delay 5A @ 250VAC/DC Panel Mount
